ADAU7002

PRODUCTION

Stereo PDM-to-I2S or TDM Conversion IC

Analog Devices ADAU7002 Product Info

10 February 2026 5

Features

64× decimation of a stereo pulse density modulation (PDM) bit stream to pulse code modulation (PCM) audio data
Slave I²S or time division multiplexed (TDM) output interface
Configurable TDM slots
I/O supply operation: 1.62 V to 3.6 V
64× output sample rate PDM clock
64×/128×/192×/256×/384×/512× output sample rate BCLK
Automatic BCLK ratio detection

Output sample rate: 4 kHz to 96 kHz
Automatic PDM CLK drive at 64× the sample rate
Automatic power down with BCLK removal
0.67 mA operating current at 48 kHz and 1.8 V IOVDD supply
Shutdown current: <1 μA

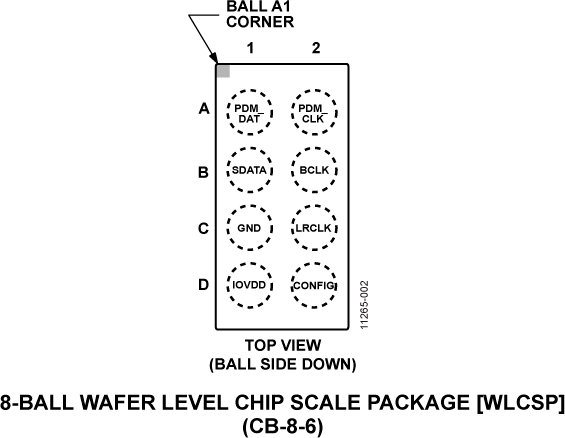

8-ball, 1.56 mm × 0.76 mm, 0.4 mm pitch WLCSP
Power-on reset

Part details & applications

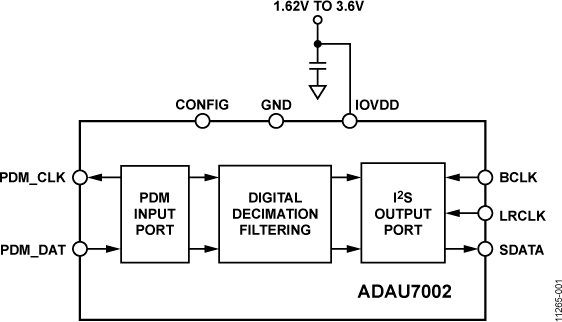

The ADAU7002 converts a stereo PDM bit stream into a PCM output. The source for the PDM data can be two microphones or other PDM sources. The PCM audio data is output on a serial audio interface port in either I²S or TDM format.

The ADAU7002 is specified over the commercial temperature range (−40°C to +85°C). It is available in a halide-free, 8-ball, 1.56 mm × 0.76 mm, wafer level chip scale package (WLCSP).

Applications

Mobile computing
Portable electronics
Consumer electronics
