Analog Devices LT3070-1 Product Info

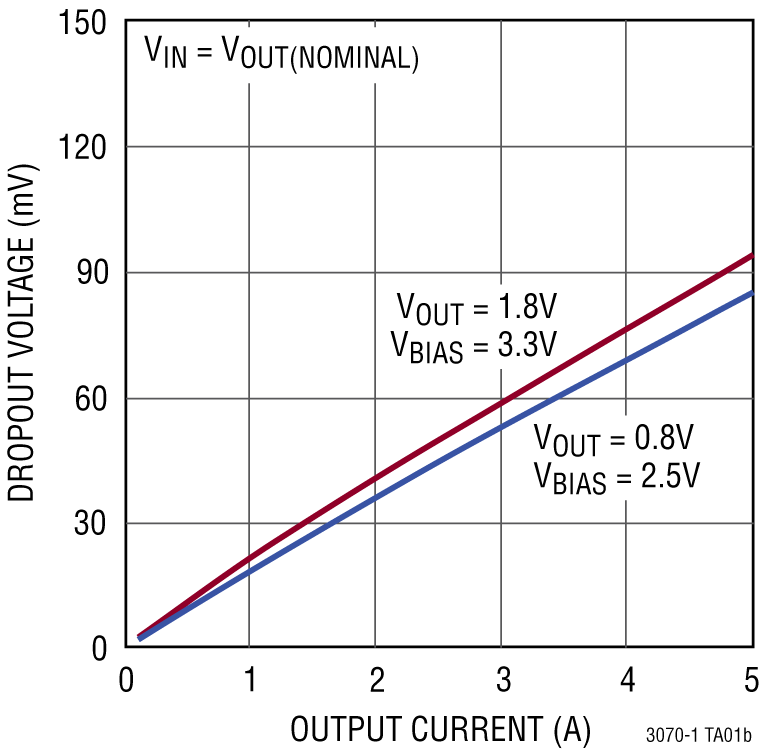

The LT3070-1 is a low voltage, Ultrafast^™ transient response linear regulator. The device supplies up to 5A of output current with a typical dropout voltage of 85mV. A 0.01μF reference bypass capacitor decreases output voltage noise to 25μV_RMS. The LT3070-1 EN pin controls the reference soft-start behavior in comparison to the LT3070 which controls the reference soft-start via the BIAS pin supply voltage. The LT3070-1’s high bandwidth permits the use of low ESR ceramic capacitors, saving bulk capacitance and cost. The LT3070-1’s features make it ideal for high performance FPGAs, microprocessors or sensitive communication supply applications.

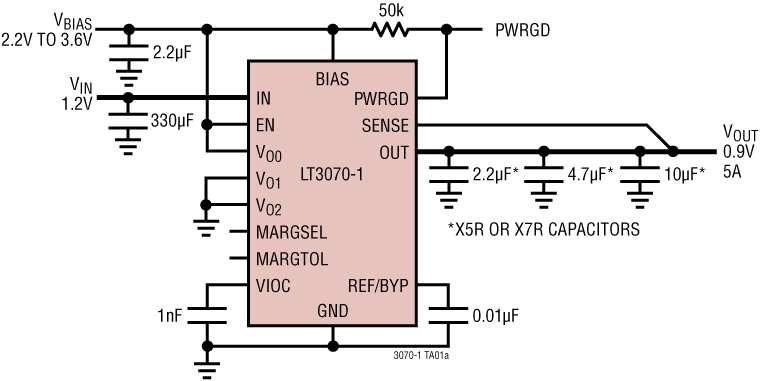

Output voltage is digitally selectable in 50mV increments over a 0.8V to 1.8V range. A margining function allows the user to adjust system output voltage in increments of ±1%, ±3% or ±5%. The IC incorporates a unique tracking function to control a buck regulator powering the LT3070-1’s input. This tracking function drives the buck regulator to maintain the LT3070-1’s input voltage to V_OUT + 300mV, minimizing power dissipation.

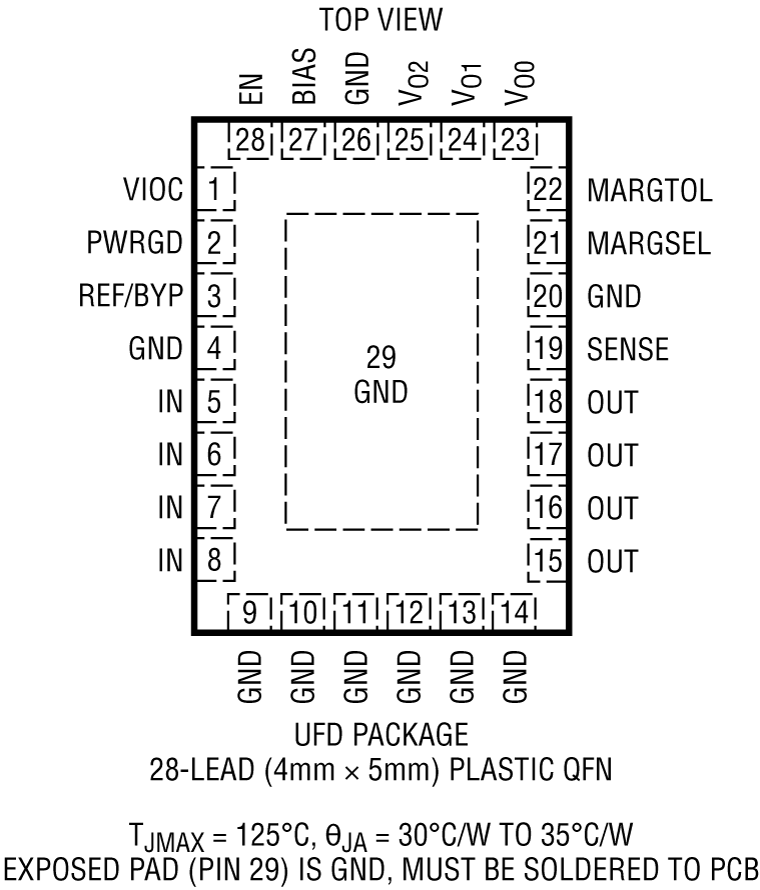

Internal protection includes UVLO, reverse-current protection, precision current limiting with power foldback and thermal shutdown. The LT3070-1 regulator is available in a thermally enhanced 28-lead, 4mm × 5mm QFN package.

APPLICATIONS

• FPGA and DSP Supplies
• ASIC and Microprocessor Supplies
• Servers and Storage Devices
• Post Buck Regulation and Supply Isolation
