ADAR4002

RECOMMENDED FOR NEW DESIGNS

0.5 GHz to 19 GHz, 1-Channel, Bidirectional True Time Delay Unit

Analog Devices ADAR4002 Product Info

10 February 2026 3

Features

  • 0.5 GHz to 19 GHz frequency range
  • Programmable 7-bit time delay
  • Programmable Time Delay Range (typical)
    • Range 0: 0 ps to 508 ps with 4 ps standard resolution
    • Range 1: 0 ps to 254 ps with 2 ps high resolution
  • Programmable6-bit attenuation
    • 31.5 dB adjustment range
    • 0.5 dB resolution
  • Performance at 10 GHz for minimum time delay and attenuation
    • Insertion loss
        • Time Delay Range 0: −20.5 dB
        • Time Delay Range 1: −16.2 dB
      • Input IP3
          • Time Delay Range 0: 15.2 dBm
          • Time Delay Range 1: 14.1 dBm
      • Input P1dB
          • Time Delay Range 0: 5 dBm
          • Time Delay Range 1: 4.1 dBm
        • Noise figure
          • Time Delay Range 0: 21.2 dB
          • Time Delay Range 1: 16.6 dB
      • Fully programmable via a 3-wire or 4-wire SPI
      • 14-bit shift register for daisy chaining and quick data load
      • Power Dissipation: 1 mW with 1.2V and 1.0V Dual Supplies

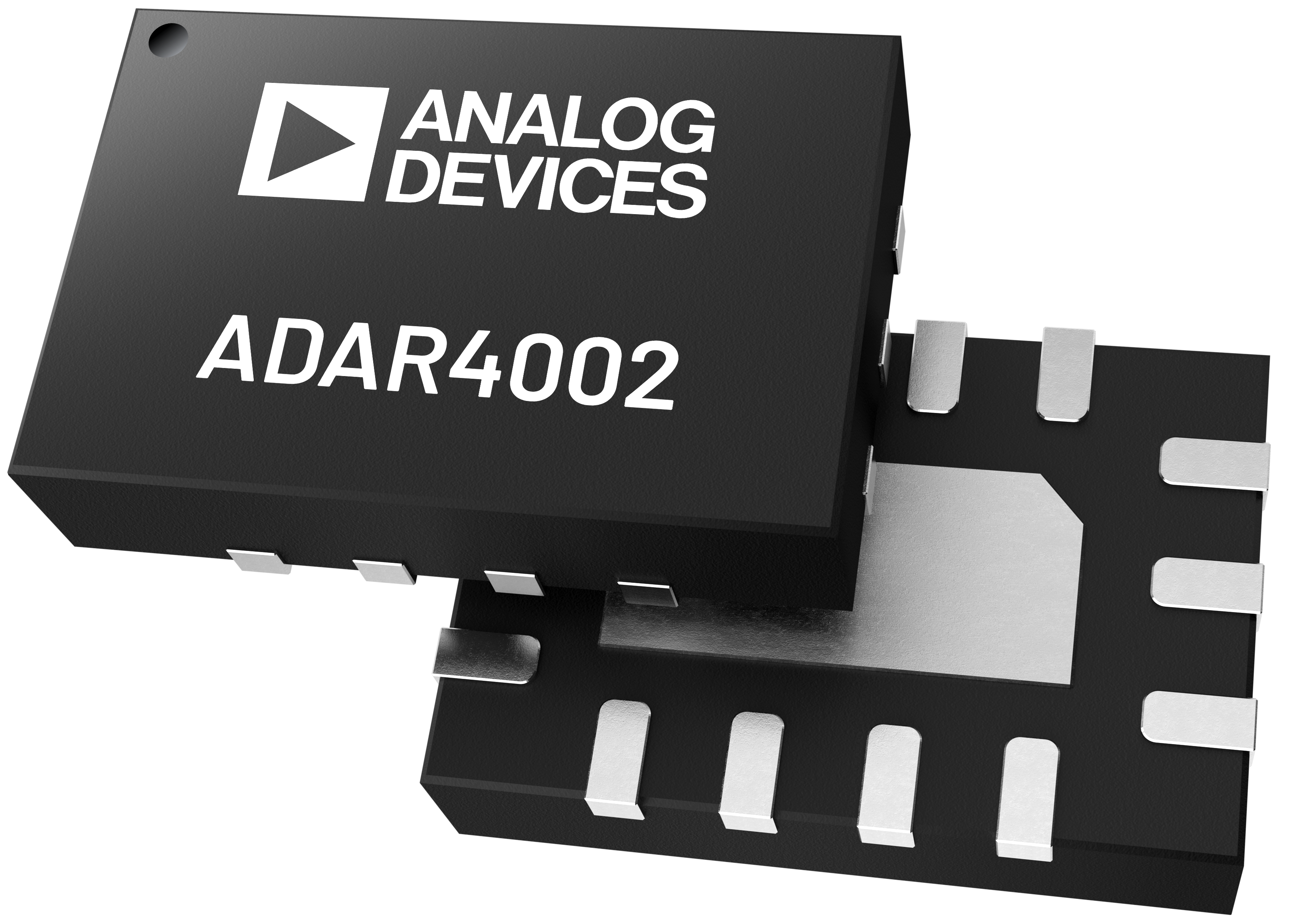

      • 14-lead, 3 mm × 2 mm, LFCSP

Part details & applications

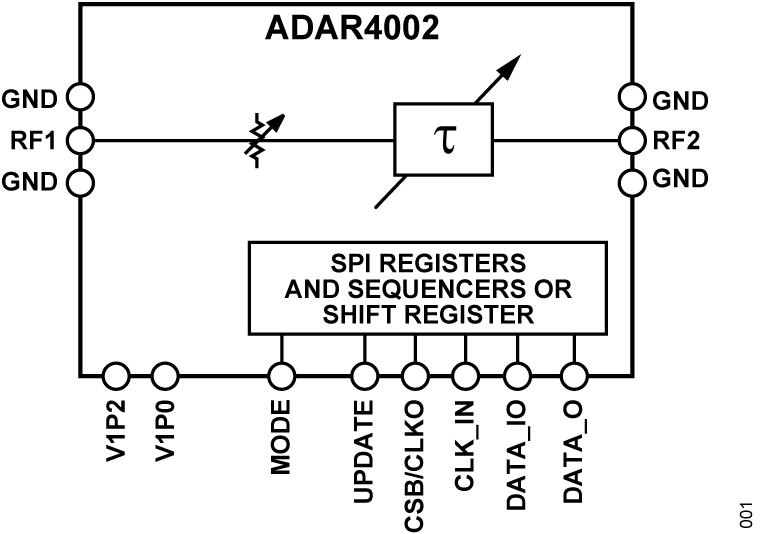

The ADAR4002 is a low power broadband, bidirectional, single- channel, true time delay unit (TDU) and a digital step attenuator (DSA). The IC has 18.5 GHz of bandwidth over a frequency range of 0.5 GHz to 19 GHz with 50 Ω input impedance at both RF ports. The TDU has two programmable maximum time delays, each with 7-bit control. Range 0 has a maximum delay of 508 ps with a resolution of 4 ps (typical). This range is used at lower frequencies where the ADAR4002 has less insertion loss and where more time delay is required for full 360° phase coverage. Range 1 has a maximum delay of 254 ps and a resolution of 2 ps (typical). This range has less insertion loss compared to Range 0 and is useful at higher frequencies where the ADAR4002 has higher insertion loss, and where less time delay and smaller resolution are required. The DSA has 6-bit resolution with an attenuation range of 0 dB to 31.5 dB and a step size of 0.5 dB.

The ADAR4002 is designed to provide flexible digital control through either a serial port interface (SPI) or a shift register to allow daisy chaining multiple chips together. The ADAR4002 contains register memory for 32 TDU and DSA states. The memory combined with on-chip sequencers, allows a fast bidirectional memory advance via the UPDATE pin.

The ADAR4002 is available in a 14-lead, 2 mm x 3 mm, LFCSP and is specified from −40°C to +85°C.

APPLICATIONS

  • Electronic steerable antenna arrays
  • Multi-Function Arrays
  • Satellite communications (SATCOM)
  • RADAR
  • Data Links
  • Test Equipment
