ADAQ7768-1

RECOMMENDED FOR NEW DESIGNS

24-Bit Single Channel Precision μModule Data Acquisition System

Analog Devices ADAQ7768-1 Product Info

10 February 2026 5

Features

Highly-integrated data acquisition solution
Seven programmable-gain options
- G = 0.325, 0.65, 1.3, 2.6, 5.2, 10.4, 20.8 V/V
Maximum input range of ±12.6 V differential
Maximum input common-mode range of -12 V to +12 V
Fourth-order AAF with maximum flatness and linear phase
Full aliasing protection with 100 dB typical rejection
Excellent device-to-device phase matching and drift
Combined precision AC and DC performance:
- Total system dynamic range up to 130 dB
- −120 dB typical THD at 0.325 V/V gain
- 98 dB minimum DC CMRR at 20.8 V/V gain
- 25 pA maximum input bias current at 25°C
- ±3 ppm typical INL
- 4.5 ppm/°C maximum gain error drift
- ±0.084° maximum device-to-device phase mismatch at 20 kHz

Programmable output data rate, filter type, and latency
Linear phase digital filter options:
- Wideband low-ripple FIR filter (110 kHz maximum input bandwidth)
- Sinc5 filter (1.024 MSPS, 198.4 kHz maximum input bandwidth, 4 μs maximum group delay)
- Sinc3 filter (50 Hz/60 Hz rejection)
Integrated LDO
Built-in supply decoupling capacitors
Configuration through pin strapping or SPI
Digital interface optimized for isolated applications
Suite of diagnostic check mechanisms
Operating temperature range: −40°C to +105°C
Packaging:12.00 mm × 6.00 mm 84-ball CSP_BGA with an 0.80 mm ball pitch
- 10× footprint reduction vs. discrete solution

Part details & applications

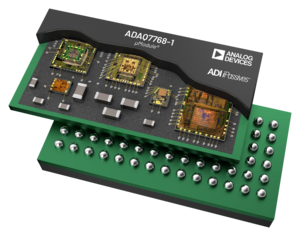

The ADAQ7768-1¹ is a 24-bit precision data acquisition (DAQ) μModule^® system that encapsulates signal conditioning, conversion, and processing blocks into one system-in-package (SiP) design for the rapid development of highly compact, high-performance precision DAQ systems.

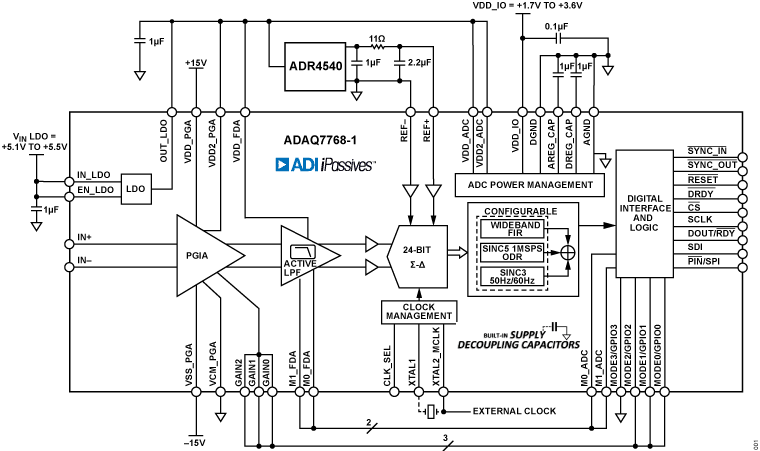

The ADAQ7768-1 consists of:

A low-noise, low-bias current, high-bandwidth programmable-gain instrumentation amplifier (PGIA) also capable of signal amplification and signal attenuation while maintaining high input impedance.
A fourth-order, low-noise, linear phase anti-aliasing filter.
A low-noise, low-distortion, high-bandwidth ADC driver plus an optional linearity boost buffer.
A high-performance medium bandwidth 24-bit Σ-Δ ADC with programmable digital filter.
A low-noise, low-dropout linear regulator.
Reference buffers.
Critical passive components required for the signal chain.

The ADAQ7768-1 supports fully differential input signal with a maximum range of ±12.6 V. It has an input common-mode voltage range of ±12 V with excellent common-mode rejection ratio (CMRR).

The input signal is fully buffered with very low input bias current of 2 pA typical. This allows easy input impedance matching and enables the ADAQ7768-1 to directly interface to sensors with high output impedance.

The seven pin-configurable gain settings offer additional system dynamic range and improved signal chain noise performance with input signals of lower amplitude.

A fourth-order low-pass analog filter combined with the user-programmable digital filter ensures the signal chain is fully protected against the high frequency noise and out-of-band tones presented at the input node from aliasing back into the band of interest. The analog low-pass filter is carefully designed to achieve high phase linearity and maximum in-ban
