Analog Devices AD7660 Product Info

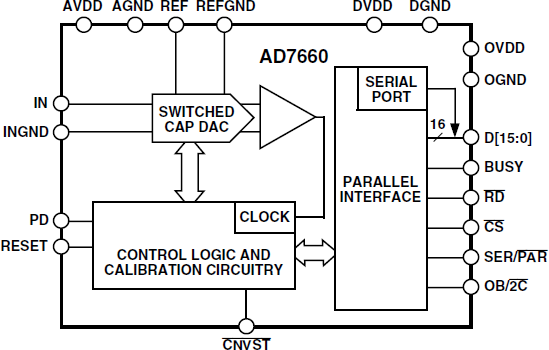

The AD7660 is a 16-bit, 100 kSPS, charge redistribution SAR, analog-to-digital converter that operates from a single 5 V power supply. The part contains an internal conversion clock, error correction circuits, and both serial and parallel system interface ports.

The AD7660 is hardware factory-calibrated and is comprehensively tested to ensure ac parameters such as signal-to-noise ratio (SNR) and total harmonic distortion (THD), in addition to the more traditional dc parameters of gain, offset, and linearity.

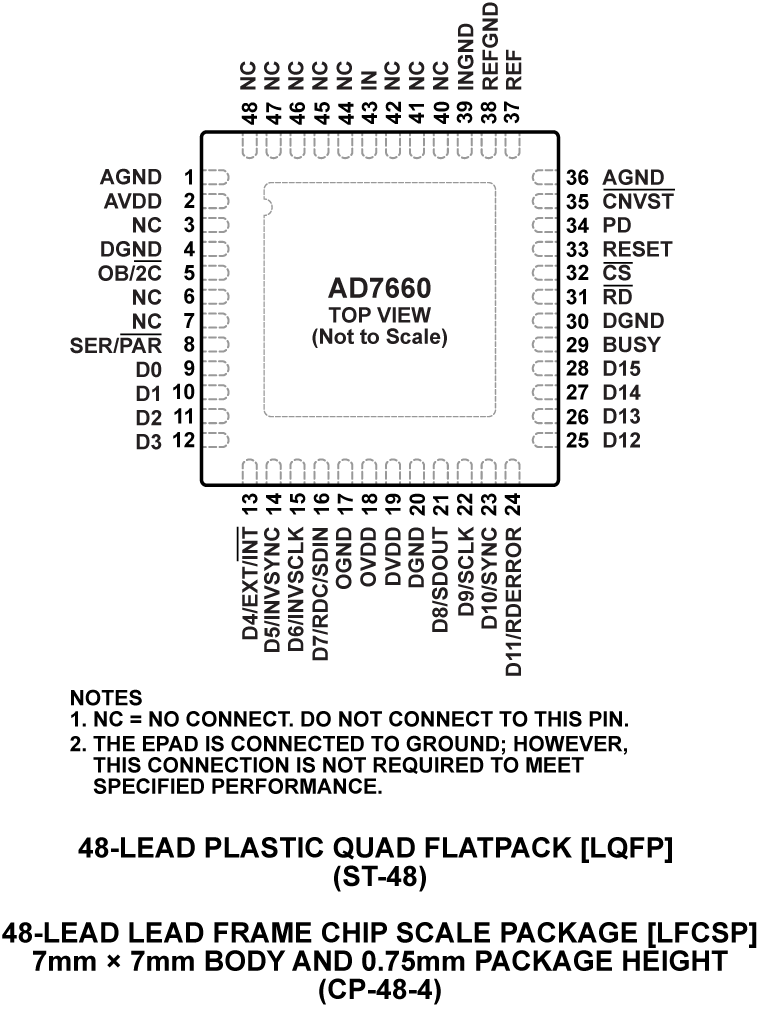

It is fabricated using Analog Devices’ high performance, 0.6 micron CMOS process with correspondingly low cost and is available in a 48-lead LQFP and a tiny 48-lead LFCSP with operation specified from –40°C to +85°C.

PRODUCT HIGHLIGHTS

1. Fast throughput
   The AD7660 is a 100 kSPS, charge redistribution, 16-bit SAR ADC with internal error correction circuitry.
2. Superior INL
   The AD7660 has a maximum integral nonlinearity of 3 LSBs with no missing 16-bit code.
3. Single-supply operation
   The AD7660 operates from a single 5 V supply and only dissipates 21 µW typical. Its power dissipation decreases with the throughput to, for instance, only 21 µW at a 100 SPS throughput. It consumes 7 µW maximum when in power-down.
4. Serial or parallel interface
   Versatile parallel or 2-wire serial interface arrangement compatible with both 3 V or 5 V logic.

APPLICATIONS

• Data acquisition
• Battery-powered systems
• PCMCIA
• Instrumentation
• Automatic test equipment
• Scanners
• Medical instruments
• Process control
