Analog Devices AD7626 Product Info

• Throughput: 10 MSPS
• SNR: 91.5 dB
• 16-bit no missing codes
• INL: ±0.45 LSB
• DNL: ±0.35 LSB
• Power dissipation: 136 mW

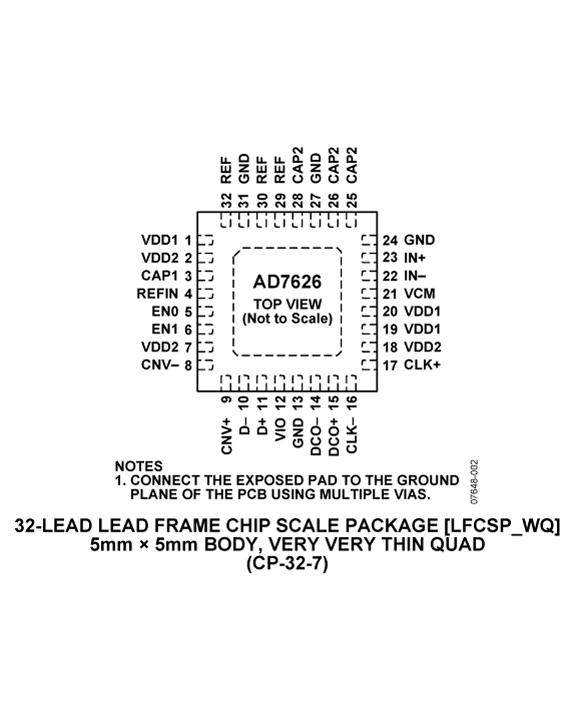

• 32-lead LFCSP (5 mm × 5 mm)
• SAR architecture

  • No latency/pipeline delay
• 16-bit resolution with no missing codes
• Zero error: ±1 LSB
• Differential input range: ±4.096 V
• See data sheet for additional features

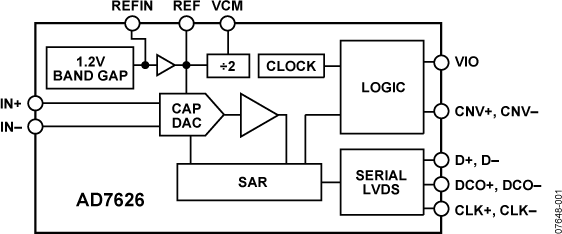

The AD7626 is a 16-bit, 10 MSPS, charge redistribution successive approximation register (SAR) based architecture analog-to-digital converter (ADC). SAR architecture allows unmatched performance both in noise (91.5 dB SNR) and in linearity (±0.45 LSB INL). The AD7626 contains a high speed, 16-bit sampling ADC, an internal conversion clock, and an internal buffered reference. On the CNV edge, it samples the voltage difference between the IN+ and IN− pins. The voltages on these pins swing in opposite phase between 0 V and REF. The 4.096 V reference voltage, REF, can be generated internally or applied externally.

All converted results are available on a single low voltage differential signaling (LVDS) self clocked or echoed clock serial interface, reducing external hardware connections.

The AD7626 is housed in a 32-lead, 5 mm × 5 mm LFCSP with operation specified from −40°C to +85°C.

Applications

• Digital imaging systems
  – Digital X-ray
  – Digital MRI
  – CCD and IR cameras
• High speed data acquisition
• High dynamic range telecommunications receivers
• Spectrum analysis
• Test equipment
