Analog Devices AD5664 Product Info

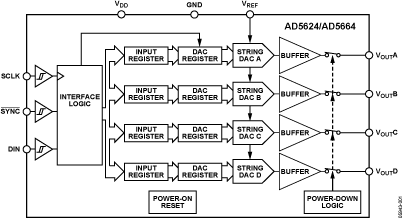

The AD5624 / AD5664, members of the nanoDAC^® family, are low power, quad, 12-, 16-bit buffered voltage-out DACs that operate from a single 2.7 V to 5.5 V supply and are guaranteed monotonic by design.

The AD5624 / AD5664 require an external reference voltage to set the output range of the DAC. The part incorporates a power-on reset circuit that ensures the DAC output powers up to 0 V and remains there until a valid write takes place. The parts contain a power-down feature that reduces the current consumption of the device to 480 nA at 5 V and provides software-selectable output loads while in power-down mode.

The low power consumption of these parts in normal operation makes them ideally suited to portable battery-operated equipment. The power consumption is 2.25 mW at 5 V, going down to 2.4 μW in power-down mode.

The AD5624 / AD5664 on-chip precision output amplifier allows rail-to-rail output swing to be achieved. The AD5624/AD5664 use a versatile 3-wire serial interface that operates at clock rates up to 50 MHz, and are compatible with standard SPI^®, QSPI^™, MICROWIRE^™, and DSP interface standards.

PRODUCT HIGHLIGHTS

1. Relative accuracy: ±12 LSBs maximum.

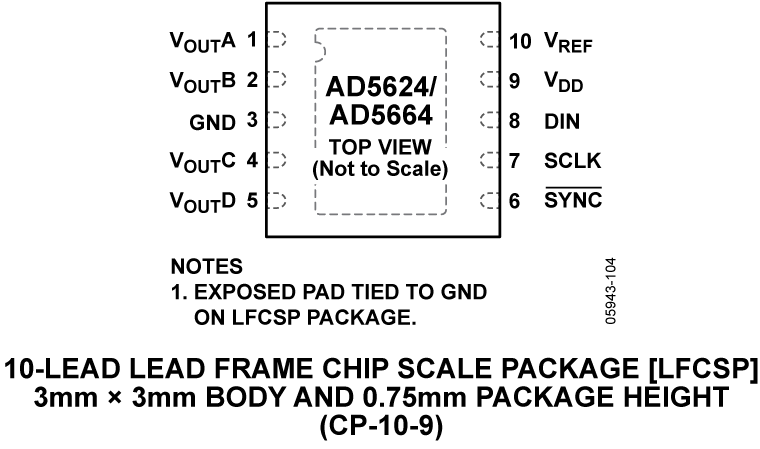

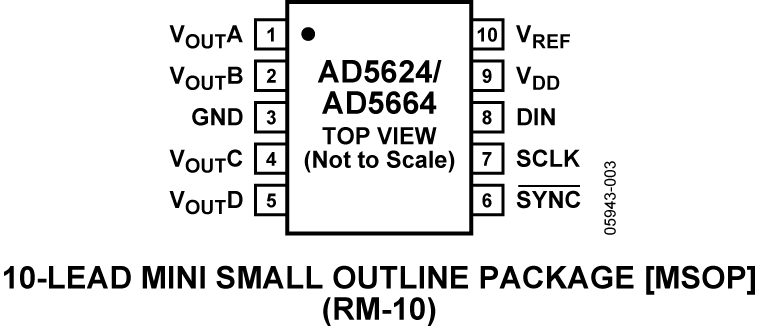

2. Available in 10-lead MSOP and 10-lead, 3 mm × 3 mm, LFCSP_WD.
3. Low power, typically consumes 1.32 mW at 3 V and 2.25 mW at 5 V.
4. Maximum settling time of 4.5 μs (AD5624) and 7 μs (AD5664).

APPLICATIONS

• Process control
• Data acquisition systems
• Portable battery-powered instruments
• Digital gain and offset adjustment
• Programmable voltage and current sources
• Programmable attenuators
