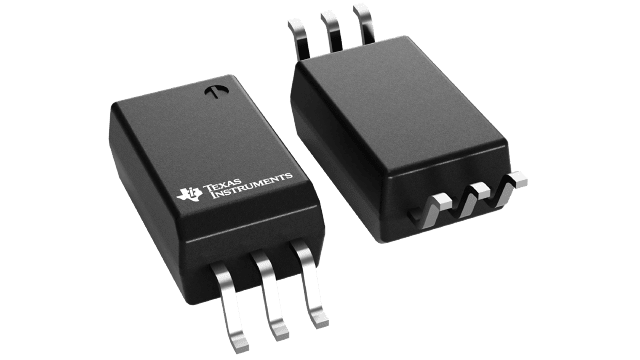

UCC23113
  • UCC23113
  • UCC23113

UCC23113

ACTIVE

4A/5A single-channel opto-compatible isolated gate driver with functional isolation (1.2kVRMS)

Texas Instruments UCC23113 Product Info

1 April 2026 1

Parameters

Number of channels

1

Isolation rating

Functional

Power switch

IGBT, MOSFET, SiCFET

Withstand isolation voltage (VISO) (Vrms)

3750

Working isolation voltage (VIOWM) (Vrms)

700

Transient isolation voltage (VIOTM) (VPK)

5300

Peak output current (A)

4.5

Peak output current (source) (typ) (A)

4.5

Peak output current (sink) (typ) (A)

5.3

Features

Opto-compatible input

Output VCC/VDD (min) (V)

14

Output VCC/VDD (max) (V)

33

Input threshold

4 mA, 4mA

Operating temperature range (°C)

-40 to 125

Rating

Catalog

Fall time (ns)

25

Undervoltage lockout (typ) (V)

8, 12

Package

SOIC (DWY)-6-53.82 mm² 4.68 x 11.5

Features

  • 1.5-kV DC single channel isolated gate driver with opto-compatible input
  • Pin-to-pin, drop in upgrade for opto isolated gate drivers
  • 5-A source / 5-A sink, peak output current
  • Maximum 30-V output driver supply voltage
  • 12-V VDD undervoltage lockout
  • Rail-to-rail output
  • 105-ns (maximum) propagation delay
  • 25-ns (maximum) part-to-part delay matching
  • 35-ns (maximum) pulse width distortion
  • 100-kV/µs (minimum) common-mode transient immunity (CMTI)
  • 5-V reverse polarity voltage handling capability on input stage supporting interlock
  • Stretched SO-6 package with >8.5-mm creepage and clearance
  • Operating junction temperature, T J: –40°C to +150°C
  • 1.5-kV DC single channel isolated gate driver with opto-compatible input
  • Pin-to-pin, drop in upgrade for opto isolated gate drivers
  • 5-A source / 5-A sink, peak output current
  • Maximum 30-V output driver supply voltage
  • 12-V VDD undervoltage lockout
  • Rail-to-rail output
  • 105-ns (maximum) propagation delay
  • 25-ns (maximum) part-to-part delay matching
  • 35-ns (maximum) pulse width distortion
  • 100-kV/µs (minimum) common-mode transient immunity (CMTI)
  • 5-V reverse polarity voltage handling capability on input stage supporting interlock
  • Stretched SO-6 package with >8.5-mm creepage and clearance
  • Operating junction temperature, T J: –40°C to +150°C

Description

The UCC23113 opto-compatible, single-channel, isolated gate driver for IGBTs, MOSFETs and SiC MOSFETs, with 5-A source and 5-A sink peak output current and 1.5-kV DC functional isolation. The high supply voltage range of 30 V allows the use of bipolar supplies to effectively drive IGBTs and SiC power FETs. The UCC23113 can drive both low-side and high-side power FETs.

Key features and characteristics bring significant performance and reliability upgrades over standard opto-coupler based gate drivers while maintaining pin-to-pin compatibility in both schematic and layout design. Performance highlights include high common-mode transient immunity (CMTI), low propagation delay, and small pulse width distortion. Tight process control results in small part-to-part skew. The input stage is an emulated diode (e-diode) which means long term reliability and excellent aging characteristics compared to traditional LEDs found in optocoupler gate drivers. It is offered in a stretched SO6 package with >8.5-mm creepage and clearance, and a mold compound from material group I which has a comparative tracking index (CTI) > 600 V.

The high performance and reliability of the UCC23113 makes it ideal for use in all types of motor drives, solar inverters, industrial power supplies, and appliances. The higher operating temperature opens up opportunities for applications not previously able to be supported by traditional optocouplers.

The UCC23113 opto-compatible, single-channel, isolated gate driver for IGBTs, MOSFETs and SiC MOSFETs, with 5-A source and 5-A sink peak output current and 1.5-kV DC functional isolation. The high supply voltage range of 30 V allows the use of bipolar supplies to effectively drive IGBTs and SiC power FETs. The UCC23113 can drive both low-side and high-side power FETs.

Key features and characteristics bring significant performance and reliability upgrades over standard opto-coupler based gate drivers while maintaining pin-to-pin compatibility in both schematic and layout design. Performance highlights include high common-mode transient immunity (CMTI), low propagation delay, and small pulse width distortion. Tight process control results in small part-to-part skew. The input stage is an emulated diode (e-diode) which means long term reliability and excellent aging characteristics compared to traditional LEDs found in optocoupler gate drivers. It is offered in a stretched SO6 package with >8.5-mm creepage and clearance, and a mold compound from material group I which has a comparative tracking index (CTI) > 600 V.

The high performance and reliability of the UCC23113 makes it ideal for use in all types of motor drives, solar inverters, industrial power supplies, and appliances. The higher operating temperature opens up opportunities for applications not previously able to be supported by traditional optocouplers.
