ACTIVE
Number of channels |
4 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
40 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
4.5 |
Rail-to-rail |
In to V-, Out |
GBW (typ) (MHz) |
1 |
Slew rate (typ) (V/µs) |
3 |
Vos (offset voltage at 25°C) (max) (mV) |
2.5 |
Iq per channel (typ) (mA) |
0.15 |
Vn at 1 kHz (typ) (nV√Hz) |
33 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
Offset drift (typ) (µV/°C) |
2 |
Features |
Cost Optimized, EMI Hardened, MUX Friendly |
CMRR (typ) (dB) |
110 |
Iout (typ) (A) |
0.06 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.2 |
Input common mode headroom (to positive supply) (typ) (V) |
2 |
Output swing headroom (to negative supply) (typ) (V) |
0.04 |
Output swing headroom (to positive supply) (typ) (V) |
-0.04 |
SOIC (D)-14-51.9 mm² 8.65 x 6

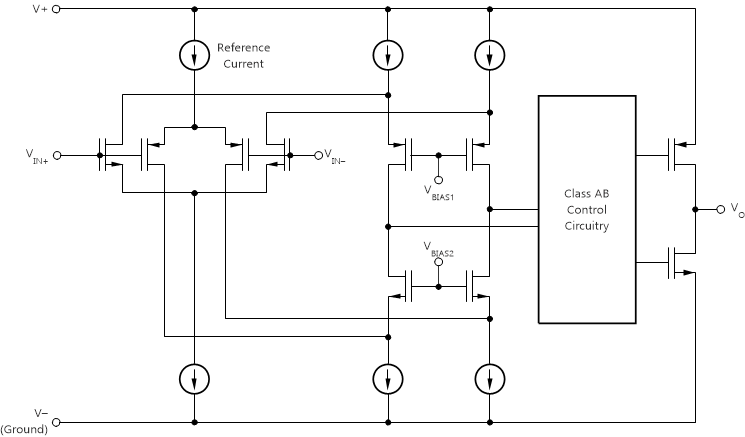

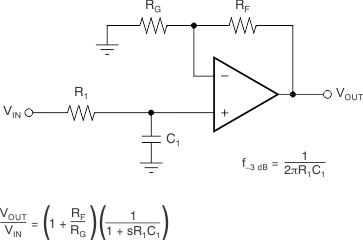

The TLV930x family (TLV9301, TLV9302, and TLV9304) is a family of 40-V, cost-optimized operational amplifiers. These devices offer strong general-purpose DC and AC specifications, including rail-to-rail output, low offset (±0.5 mV, typ), low offset drift (±2 µV/°C, typ), and 1-MHz bandwidth.
Convenient features such as wide differential input-voltage range, high output current (±60 mA), and high slew rate (3 V/µs) make the TLV930x a robust operational amplifier for high-voltage, cost-sensitive applications.
The TLV930x family of op amps is available in standard packages and is specified from –40°C to 125°C.
