UC1715-SP
  • UC1715-SP

UC1715-SP

ACTIVE

Radiation-hardened QMLV, single-channel input gate driver with complementary 0.5-A/1-A dual-outputs

Texas Instruments UC1715-SP Product Info

1 April 2026 1

Parameters

Number of channels

2

Power switch

MOSFET

Peak output current (A)

2

Input supply voltage (min) (V)

7

Input supply voltage (max) (V)

20

Features

Aux Output, Dead Time Control

Operating temperature range (°C)

-55 to 125

Fall time (ns)

25

Input threshold

TTL

Channel input logic

Inverting

Input negative voltage (V)

0

Rating

Space

Driver configuration

Aux Output

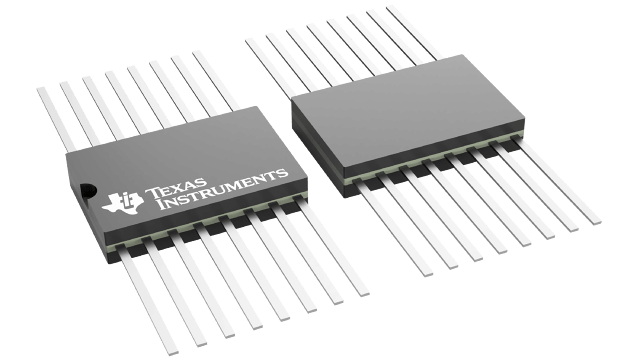

Package

CFP (W)-16-69.319 mm² 10.3 x 6.73

Features

  • Single Input (PWM and TTL Compatible)
  • High Current Power FET Driver,
    1-A Source/2-A Sink
  • Auxiliary Output FET Driver,
    0.5-A Source/1-A Sink
  • Time Delays Between Power and Auxiliary Outputs
    Independently Programmable from
    50 ns to 700 ns
  • Time Delay or True Zero-Voltage Operation
    Independently Configurable for Each Output
  • Switching Frequency to 1 MHz
  • Typical 50-ns Propagation Delays
  • ENBL Pin Activates 220-µA Sleep Mode
  • Power Output is Active Low in Sleep Mode
  • Synchronous Rectifier Driver

  • Single Input (PWM and TTL Compatible)
  • High Current Power FET Driver,
    1-A Source/2-A Sink
  • Auxiliary Output FET Driver,
    0.5-A Source/1-A Sink
  • Time Delays Between Power and Auxiliary Outputs
    Independently Programmable from
    50 ns to 700 ns
  • Time Delay or True Zero-Voltage Operation
    Independently Configurable for Each Output
  • Switching Frequency to 1 MHz
  • Typical 50-ns Propagation Delays
  • ENBL Pin Activates 220-µA Sleep Mode
  • Power Output is Active Low in Sleep Mode
  • Synchronous Rectifier Driver

Description

The UC1715 is a high speed driver designed to provide drive waveforms for complementary switches. Complementary switch configurations are commonly used in synchronous rectification circuits and active clamp/reset circuits, which can provide zero voltage switching. In order to facilitate the soft switching transitions, independently programmable delays between the two output waveforms are provided on this driver. The delay pins also have true zero voltage sensing capability which allows immediate activation of the corresponding switch when zero voltage is applied. This device requires a PWM-type input to operate and can be interfaced with commonly available PWM controllers.

The UC1715 is a high speed driver designed to provide drive waveforms for complementary switches. Complementary switch configurations are commonly used in synchronous rectification circuits and active clamp/reset circuits, which can provide zero voltage switching. In order to facilitate the soft switching transitions, independently programmable delays between the two output waveforms are provided on this driver. The delay pins also have true zero voltage sensing capability which allows immediate activation of the corresponding switch when zero voltage is applied. This device requires a PWM-type input to operate and can be interfaced with commonly available PWM controllers.
