ACTIVE
Rating |
Automotive |
Vin (max) (V) |
30 |
Vin (min) (V) |
5.3 |
Iout (max) (A) |
0.5 |
Output options |
Fixed Output |
Vout (max) (V) |
5 |
Vout (min) (V) |
3.3 |
Fixed output options (V) |
3.3, 5 |
Noise (µVrms) |
80 |
PSRR at 100 KHz (dB) |
40 |
Iq (typ) (mA) |
4.5 |
Thermal resistance θJA (°C/W) |
77.7, 78 |
Load capacitance (min) (µF) |
0 |
Regulated outputs (#) |
1 |
Accuracy (%) |
3 |
Dropout voltage (Vdo) (typ) (mV) |
2000 |
Operating temperature range (°C) |
-40 to 125 |
SOT-223 (DCY)-4-45.5 mm² 6.5 x 7

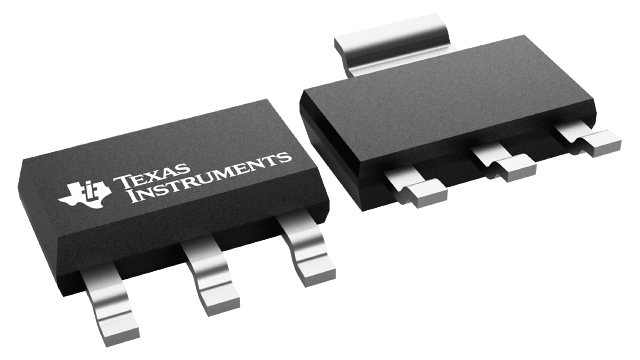

The UA78M-Q1 fixed-voltage, integrated-circuit voltage regulator is designed for a wide range of applications. The UA78M-Q1 also functions with power-pass transistors to make high-current voltage regulators. The UA78M-Q1 delivers up to 500mA of output current. Additionally, the UA78M-Q1 does not need an external capacitor for stable operation across the load current range. The internal current-limiting and thermal shutdown features of this regulator help protect the device from overload.
The UA78M-Q1 is characterized for the junction temperature range of –40°C to +125°C. See the Device Nomenclature table for more details.
