ACTIVE
Type |
Active mux |
Function |
Type-C |
USB speed (Mbps) |
5000, 10000 |
Number of channels |
6 |
Supply voltage (max) (V) |
3.6 |
Supply voltage (min) (V) |
3 |
Ron (typ) (mΩ) |
5000 |
Input/output voltage (min) (V) |
0 |
Input/output voltage (max) (V) |
3.6 |
Configuration |
Cross Point C & D |
Features |
Receiver equalizer |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
Supply current (max) (µA) |
200000 |
ESD HBM (typ) (kV) |
5 |
Bandwidth (MHz) |
1600 |

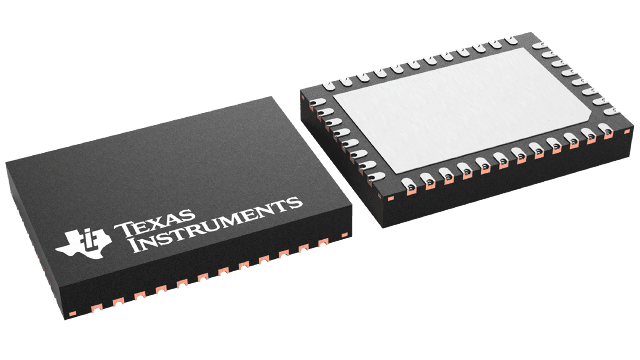

VQFN (RGF)-40-35 mm² 7 x 5

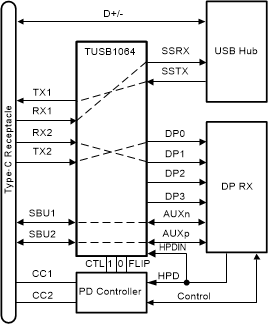

The TUSB1064-Q1 is a VESA DisplayPort™ Alt Mode over USB-C redriving switch that supports USB 3.2 data rates up to 10Gbps and DisplayPort 1.4 up to 8.1Gbps for upstream facing port (Sink). The device is used for UFP_D pin assignments C, D, and E from the VESA® DisplayPort™ Alt Mode over USB Type-C® Standard.
The TUSB1064-Q1 provides several levels of receive linear equalization to compensate for inter symbol interference (ISI) due to cable and board trace loss. The TUSB1064-Q1 operates on a single 3.3V supply and comes in an automotive grade 2 temperature range.
