ACTIVE
Protocols |
UART, USB 2.0 |
Configuration |
2:1 SPDT |
Number of channels |
2 |
USB speed (Mbps) |
480 |
Bandwidth (MHz) |
1200 |
Supply voltage (max) (V) |
5.5 |
Supply voltage (min) (V) |
2.3 |
Ron (typ) (mΩ) |
5600 |
Input/output voltage (min) (V) |
0 |
Input/output voltage (max) (V) |
20 |
Supply current (typ) (µA) |
2.2 |
ESD HBM (typ) (kV) |
2 |
Operating temperature range (°C) |
-40 to 85 |
COFF (typ) (pF) |
3.5 |
CON (typ) (pF) |
4.5 |
Off isolation (typ) (dB) |
-90 |
OFF-state leakage current (max) (µA) |
1.2 |
Ron (max) (mΩ) |
9000 |
Ron channel match (max) (Ω) |
0.3 |
Turnoff time (disable) (max) (ns) |
350 |
Turnon time (enable) (max) (ns) |
1000 |
Rating |
Catalog |
DSBGA (YFP)-12-2.52000000000000018 mm² 1.4000000000000001 x 1.8

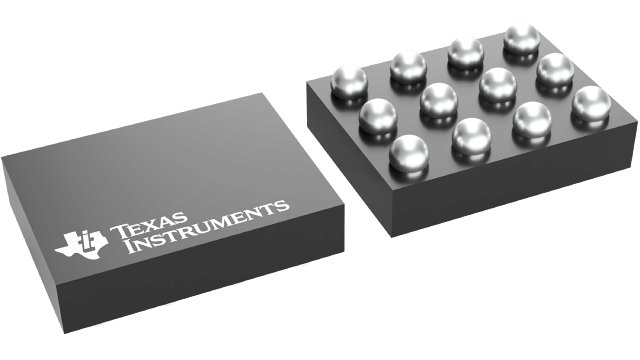

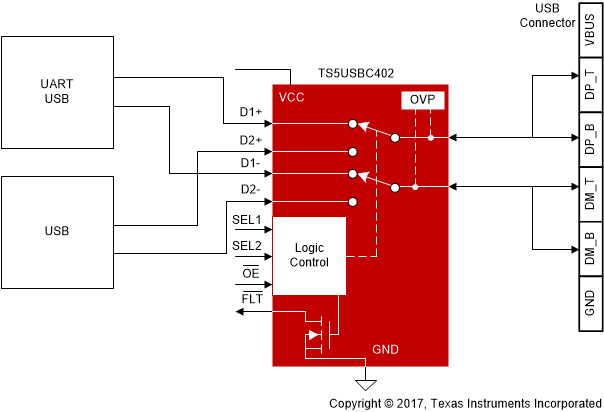

The TS5USBC402 is a bidirectional low-power dual port, high-speed, USB 2.0 analog switch with integrated protection for USB Type-C™ systems. The device is configured as a dual 2:1 or 1:2 switch and is optimized for handling the USB 2.0 D+/- lines in a USB Type-C™ systems.
The TS5USBC402 protection on the I/O pins can tolerate up to 20 V with automatic shutoff circuitry to protect system components behind the switch.
The TS5USBC402 comes in a small 12 pin DSBGA package making it a perfect candidate for mobile and space constrained applications.
