ACTIVE
Rating |
Automotive |
Topology |
Buck-Boost |
Vin (max) (V) |
55 |
Vin (min) (V) |
4.2 |
Vout (max) (V) |
55 |
Vout (min) (V) |
0.8 |
Features |
Adjustable current limit, Enable, Frequency synchronization, Phase interleaving, Power good, Prebias startup, Spread Spectrum, Synchronous rectification, UVLO adjustable |
EMI features |
Frequency Dithering, Spread Spectrum |
Duty cycle (max) (%) |
100 |
Iq (typ) (A) |
0.002 |
TI functional safety category |
Functional Safety-Capable |
Operating temperature range (°C) |
-40 to 125 |

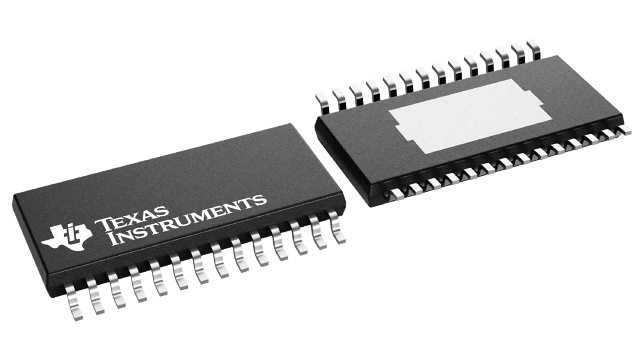

HTSSOP (PWP)-28-62.08 mm² 9.7 x 6.4

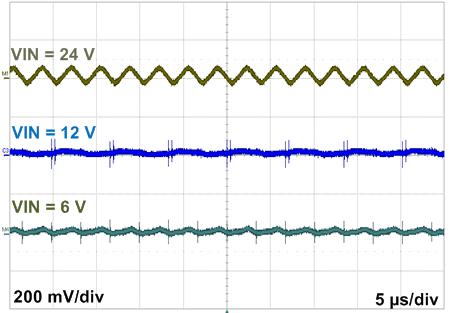

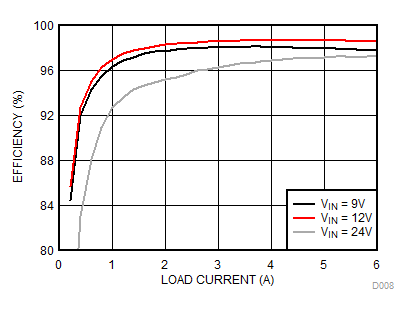

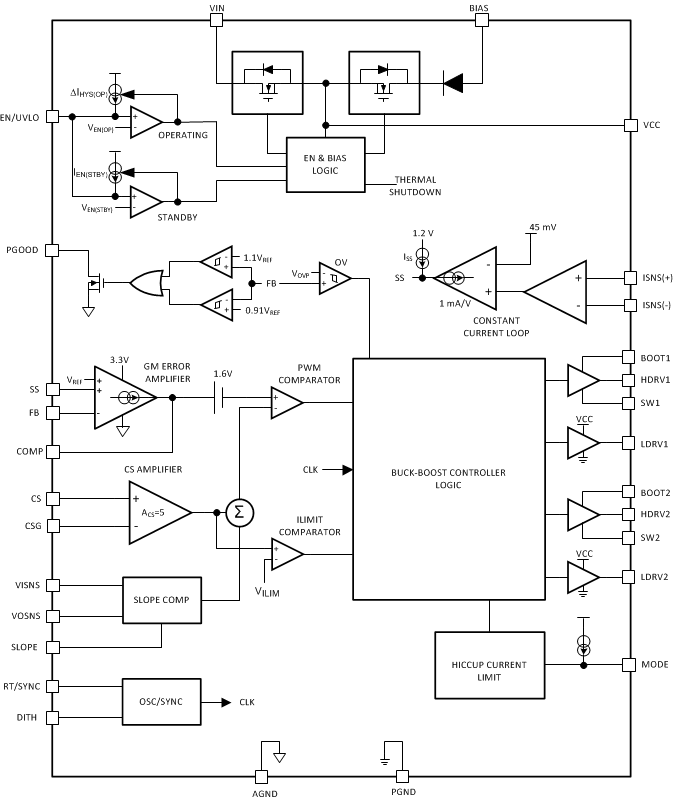

The LM5176-Q1 is a synchronous four-switch buck-boost DC/DC controller capable of regulating the output voltage at, above, or below the input voltage. The LM5176-Q1 operates over a wide input voltage range of 4.2 V to 55 V (60 V absolute maximum) to support a variety of applications.
The LM5176-Q1 employs current-mode control both in buck and boost modes of operation for superior load and line regulation. The switching frequency is programmed by an external resistor and can be synchronized to an external clock signal.
The device also features a programmable soft-start function and offers protection features including cycle-by-cycle current limiting, input undervoltage lockout (UVLO), output overvoltage protection (OVP), and thermal shutdown. In addition, the LM5176-Q1 features optional average input or output current limiting, optional spread spectrum to reduce peak EMI, and optional hiccup mode protection in sustained overload conditions.
