TS3USB31
  • TS3USB31
  • TS3USB31

TS3USB31

ACTIVE

High-Speed USB 2.0 (480-Mbps) 1-Port Switch With Single Enable

Texas Instruments TS3USB31 Product Info

1 April 2026 4

Parameters

Protocols

USB 2.0

Configuration

1:1 SPST

Number of channels

2

USB speed (Mbps)

480

Bandwidth (MHz)

1220

Supply voltage (max) (V)

4.3

Supply voltage (min) (V)

3

Ron (typ) (mΩ)

6000

Input/output voltage (min) (V)

0

Input/output voltage (max) (V)

4.3

ESD HBM (typ) (kV)

6

Operating temperature range (°C)

-40 to 85

COFF (typ) (pF)

2

CON (typ) (pF)

6

Off isolation (typ) (dB)

-30

OFF-state leakage current (max) (µA)

1

Ron (max) (mΩ)

10000

Ron channel match (max) (Ω)

0.35

Turnoff time (disable) (max) (ns)

25

Turnon time (enable) (max) (ns)

30

Rating

Catalog

Package

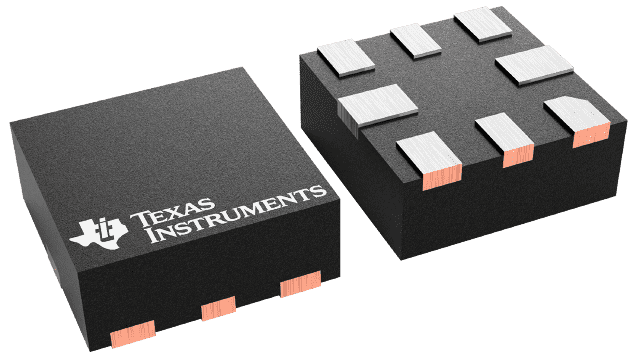

UQFN (RSE)-8-2.25 mm² 1.5 x 1.5

Features

  • VCC Operation at 3 V and 4.3 V
  • 1.8-V Compatible Control-Pin Inputs
  • IOFF Supports Partial Power-Down Mode Operation
  • ron = 10 Ω Maximum
  • Δron <0.35 Ω Typical
  • Cio(ON) = 6 pF Typical
  • Low Power Consumption (1 µA Maximum)
  • ESD Performance Tested Per JESD 22
    • 6000-V Human-Body Model
      (A114-B, Class II)
    • 1000-V Charged-Device Model (C101)
    • 250-V Machine Model (A115-A)
  • Wide –3-dB Bandwidth = 1220 MHz Typical
  • Packaged in 8-Pin TQFN (1.5 mm × 1.5 mm)
  • VCC Operation at 3 V and 4.3 V
  • 1.8-V Compatible Control-Pin Inputs
  • IOFF Supports Partial Power-Down Mode Operation
  • ron = 10 Ω Maximum
  • Δron <0.35 Ω Typical
  • Cio(ON) = 6 pF Typical
  • Low Power Consumption (1 µA Maximum)
  • ESD Performance Tested Per JESD 22
    • 6000-V Human-Body Model
      (A114-B, Class II)
    • 1000-V Charged-Device Model (C101)
    • 250-V Machine Model (A115-A)
  • Wide –3-dB Bandwidth = 1220 MHz Typical
  • Packaged in 8-Pin TQFN (1.5 mm × 1.5 mm)

Description

The TS3USB31 is a 1:1 SPST high-bandwidth switch specially designed for the switching of high-speed USB 2.0 signals. This device comes in a small UQFN package for use in a handset or consumer applications, such as cell phones, digital cameras, and notebooks with hubs. The wide bandwidth (750 MHz) of this switch allows signals to pass with minimum edge and phase distortion. The switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. It is designed for low bit-to-bit skew and high channel-to-channel noise isolation, and is compatible with various standards, such as high-speed USB 2.0 (480 Mbps).
