ACTIVE
VDS (V) |
30 |
VGS (V) |
10 |
Type |
N-channel |
Configuration |

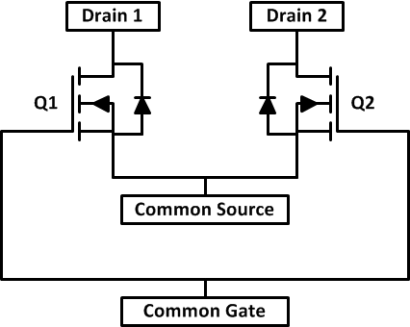

Dual Common Source |
Rds(on) at VGS=4.5 V (max) (mΩ) |
38 |
VGSTH typ (typ) (V) |
1 |
QG (typ) (nC) |
6.3 |
QGD (typ) (nC) |
0.7 |
QGS (typ) (nC) |
1.9 |
ID - silicon limited at TC=25°C (A) |
27 |
ID - package limited (A) |
27 |
Logic level |
Yes |
Rating |
Catalog |
Operating temperature range (°C) |
-55 to 150 |
VSON (DPA)-8-10.89 mm² 3.3 x 3.3
The CSD87312Q3E is a 30V common-source, dual N-channel device designed for adaptor/USB input protection. This SON 3.3 x 3.3mm device has low drain to drain on-resistance that minimizes losses and offers low component count for space constrained multi-cell battery charging applications.
