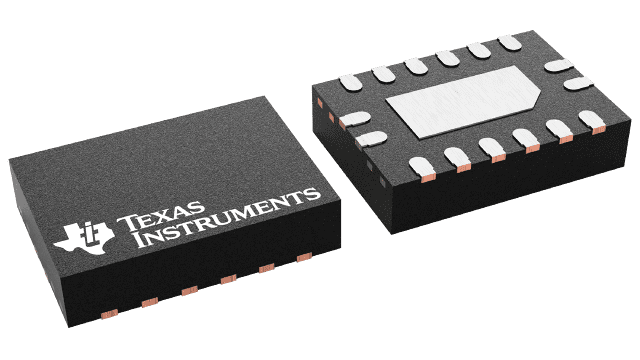

TPUL2T323

ACTIVE

2ch retriggerable monostable RC pulse generator, 1000x, TTL-inputs, trigger on CLR RE

Texas Instruments TPUL2T323 Product Info

1 April 2026 2

Parameters

Number of channels

2

Supply voltage (min) (V)

1.5

Supply voltage (max) (V)

5.5

Technology family

TPUL

Input type

Schmitt-Trigger

Output type

Push-Pull

Supply current (µA)

2

IOL (max) (mA)

12

IOH (max) (mA)

-12

Features

Balanced outputs, High speed (tpd 10-50ns), Over-voltage tolerant inputs, Partial power down (Ioff), Retriggerable

Operating temperature range (°C)

-40 to 125

Rating

Catalog

Package

SOIC (D)-16-59.4 mm² 9.9 x 6

Features

Description

  • Demodulate a digital Amplitude Shift Keying (ASK) signal
  • Reset a system for a fixed period of time
  • Generate a positive fixed-width digital pulse
  • Detect a digital signal rising edge
  • Detect a digital signal falling edge
  • Debounce a switch

  • Demodulate a digital Amplitude Shift Keying (ASK) signal
  • Reset a system for a fixed period of time
  • Generate a positive fixed-width digital pulse
  • Detect a digital signal rising edge
  • Detect a digital signal falling edge
  • Debounce a switch
