Rating |
Catalog |
Topology |
Buck, Synchronous Buck |
Iout (max) (A) |
6 |
Vin (max) (V) |
17 |
Vin (min) (V) |
4.5 |
Vout (max) (V) |
10 |
Vout (min) (V) |
0.6 |
Features |
EMI Tested, Enable, Frequency synchronization, Power good, TurboTrans |
Operating temperature range (°C) |
-40 to 105 |
Type |
Module |
Duty cycle (max) (%) |
75 |
Control mode |
current mode |
Switching frequency (min) (kHz) |
200 |
Switching frequency (max) (kHz) |
1600 |
QFM (MOL)-24-56.25 mm² 7.5 x 7.5

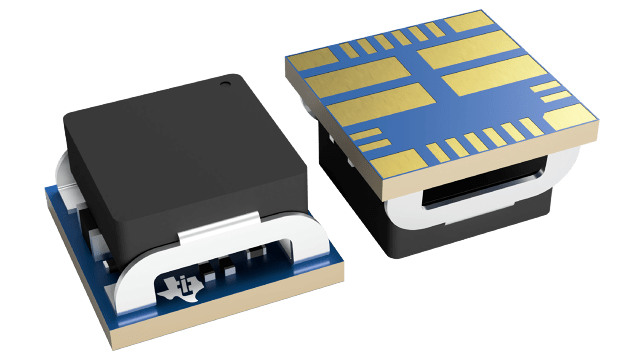

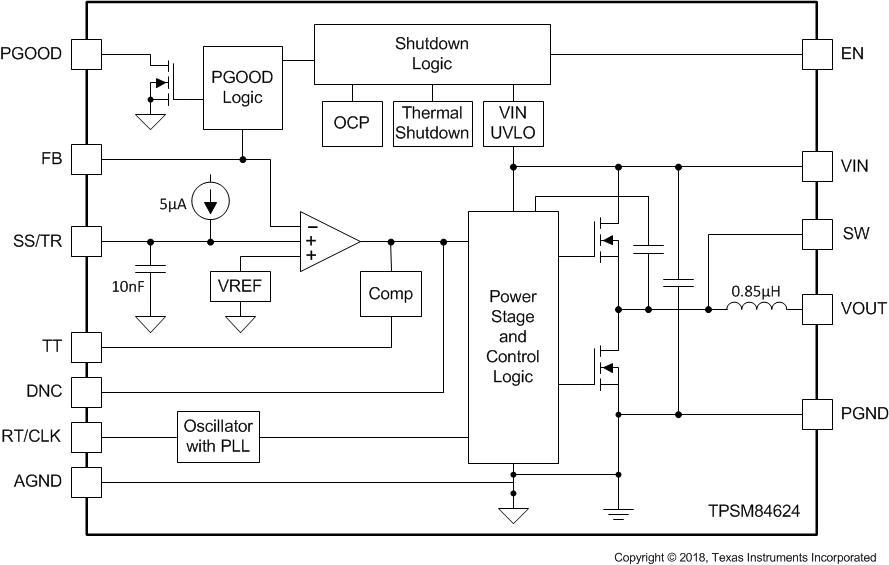

The TPSM84624 power module is an easy-to-use integrated power supply that combines a 6-A DC/DC converter with power MOSFETs, a shielded inductor and passives into a small form-factor QFM package. This power solution allows as few as six external components while maintaining the ability to adjust key parameters to meet specific design requirements. Ultra-fast transient response can be achieved by use of the TurboTrans™ feature. TurboTrans allows the transient response to be optimized for reduced output voltage deviation with less required output capacitance.
The 7.5 mm × 7.5 mm × 5.3 mm, 24-pin QFM package is easy to solder to a printed circuit board and has excellent power-dissipation capability. The TPSM84624 offers flexibility with many features including power good, programmable UVLO, tracking, prebias start-up, as well as overcurrent and overtemperature protection making it a great product to power a wide range of devices and systems.
