ACTIVE
Rating |
Catalog |
Topology |
Buck, Step-Down Converter, Synchronous Buck |
Iout (max) (A) |
4 |
Vin (max) (V) |
6 |
Vin (min) (V) |
2.95 |
Vout (max) (V) |
3.6 |
Vout (min) (V) |
0.8 |
Features |
EMI Tested, Enable, Frequency synchronization, Power good, Remote Sense, Tracking |
Operating temperature range (°C) |
-40 to 125 |
Type |
Converter (Integrated Switch), DC/DC converter, Module |
Duty cycle (max) (%) |
91 |
Control mode |
Voltage mode |
Switching frequency (min) (kHz) |
400 |
Switching frequency (max) (kHz) |
2000 |

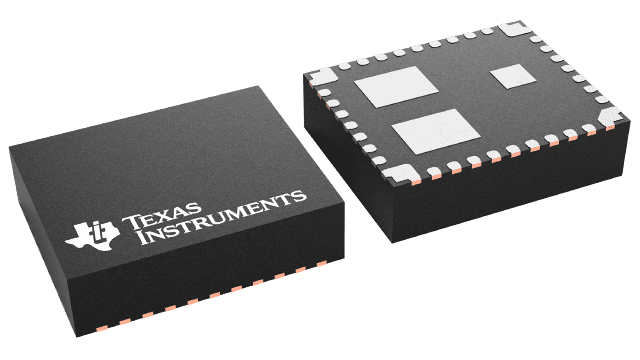

B1QFN (RKG)-39-99 mm² 11 x 9
The TPS84410RKG is an easy-to-use integrated power solution that combines a 4-A DC/DC converter with power MOSFETs, an inductor, and passives into a low profile, BQFN package. This total power solution requires as few as 3 external components and eliminates the loop compensation and magnetics part selection process.
The 9×11×2.8 mm BQFN package is easy to solder onto a printed circuit board and allows a compact point-of-load design with greater than 90% efficiency and excellent power dissipation with a thermal impedance of 12°C/W junction to ambient. The device delivers the full 4-A rated output current at 85°C ambient temperature without airflow.
The TPS84410 offers the flexibility and the feature-set of a discrete point-of-load design and is ideal for powering performance DSPs and FPGAs. Advanced packaging technology afford a robust and reliable power solution compatible with standard QFN mounting and testing techniques.
