ACTIVE
Rating |
Automotive |
Vin (max) (V) |
5.5 |
Vin (min) (V) |
2.7 |
Iout (max) (A) |
0.5 |
Output options |
Adjustable Output, Fixed Output |
Vout (max) (V) |
5.4 |
Vout (min) (V) |
1.2 |
Fixed output options (V) |
5.4 |
Noise (µVrms) |
33 |
PSRR at 100 KHz (dB) |
40 |
Iq (typ) (mA) |
0.26 |
Features |
Enable |
Thermal resistance θJA (°C/W) |
48 |
Load capacitance (min) (µF) |
1 |
Regulated outputs (#) |
1 |
Accuracy (%) |
2 |
Dropout voltage (Vdo) (typ) (mV) |
110 |
Operating temperature range (°C) |
-40 to 125 |

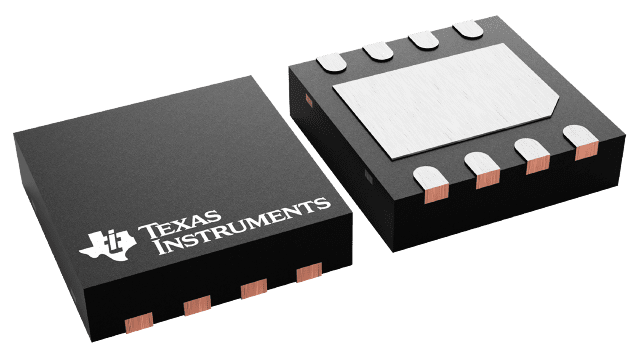

VSON (DRB)-8-9 mm² 3 x 3
The TPS79501-Q1 low-dropout (LDO), low-power linear voltage regulator features high power-supply rejection ratio (PSRR), ultralow noise, fast start-up, and excellent line and load transient responses in a small outline SON package. The device is stable with a small 1µF ceramic capacitor on the output. The TPS79501-Q1 offers low dropout voltages (for example, 110mV at 500mA). Applications with analog components that are noise-sensitive, such as portable RF electronics, benefit from the high-PSRR and low-noise features, as well as from the fast response time.
