ACTIVE
Rating |
Automotive |
Vin (max) (V) |
6 |
Vin (min) (V) |
0.8 |
Iout (max) (A) |
1.5 |
Output options |
Adjustable Output |
Vout (max) (V) |
3.6 |
Vout (min) (V) |
0.8 |

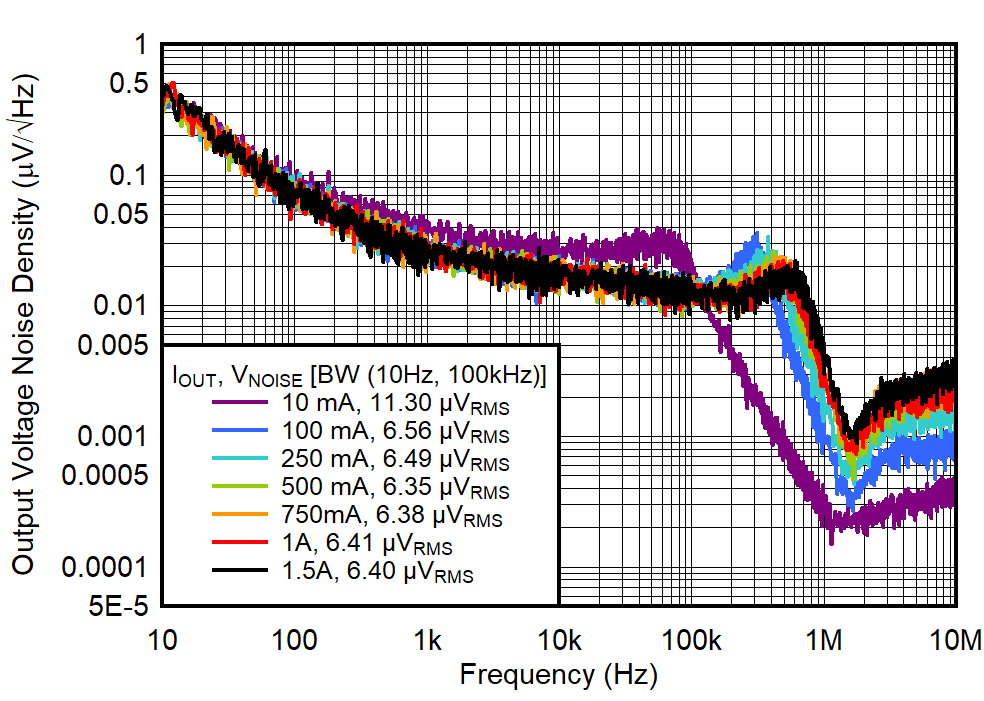

Noise (µVrms) |
7 |
PSRR at 100 KHz (dB) |
38 |
Iq (typ) (mA) |
0.55 |
Features |
Enable, Power good, Soft start |
Thermal resistance θJA (°C/W) |
47.2 |
Load capacitance (min) (µF) |
10 |
Regulated outputs (#) |
1 |
Accuracy (%) |
1.25 |
Dropout voltage (Vdo) (typ) (mV) |
75 |
Operating temperature range (°C) |
-40 to 150 |

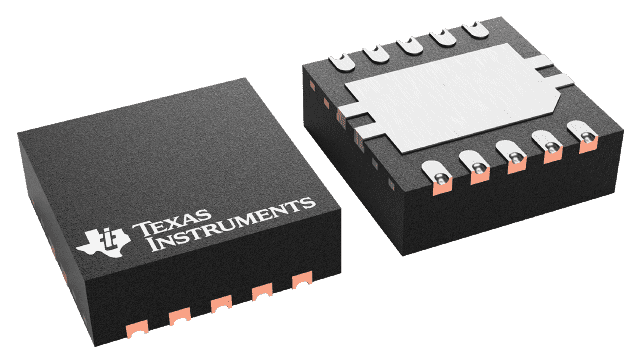

VSON (DRC)-10-9 mm² 3 x 3

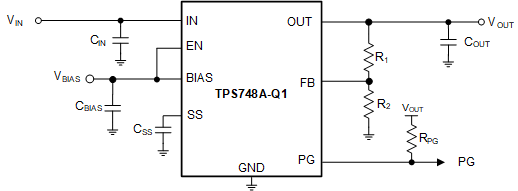

The TPS748A-Q1 low-dropout (LDO) linear regulator provides an easy-to-use robust power management solution for a wide variety of applications. User-programmable soft-start minimizes stress on the input power source by reducing capacitive inrush current on start-up. The soft-start is monotonic and designed for powering many different types of processors and application-specific integrated circuits (ASICs). The enable input and power-good output allow easy sequencing with external regulators. This complete flexibility enables a solution to be configured that meets the sequencing requirements of many applications. Field-programmable gate arrays (FPGAs), digital signal processors (DSPs), and other applications with special start-up requirements are some examples that benefit from this complete flexibility.
A precision reference and error amplifier deliver 2% accuracy over load, line, temperature, and process. The device is stable with any type of capacitor greater than or equal to 2.2µF, and is fully specified for TJ = –40°C to +150°C. The TPS748A-Q1 is offered in a small, 3mm × 3mm, VSON-10 package, yielding a highly compact, total solution size.
