Texas Instruments TPS65917-Q1 Product Info

Parameters

Processor supplier	Texas Instruments
Processor name	Jacinto DRA7x, Jacinto DRA7xP, Jacinto TDA2Px, Jacinto TDA3x
Product type	Processor and FPGA
Regulated outputs (#)	10
Step-down DC/DC converter	5
Step-up DC/DC converter	0
LDO	5
Vin (min) (V)	3.135
Vin (max) (V)	5.25
Vout (min) (V)	0.7
Vout (max) (V)	3.3
Iout (max) (A)	7
Configurability	Factory programmable, Software configurable
TI functional safety category	Functional Safety-Compliant
Features	Comm control, I2C control, Power good, Power sequencing
Rating	Automotive
Operating temperature range (°C)	-40 to 105
Step-down DC/DC controller	0
Step-up DC/DC controller	0
Iq (typ) (mA)	0.0001
Switching frequency (max) (kHz)	2700
Shutdown current (ISD) (typ) (µA)	25
Switching frequency (typ) (kHz)	2200

Package

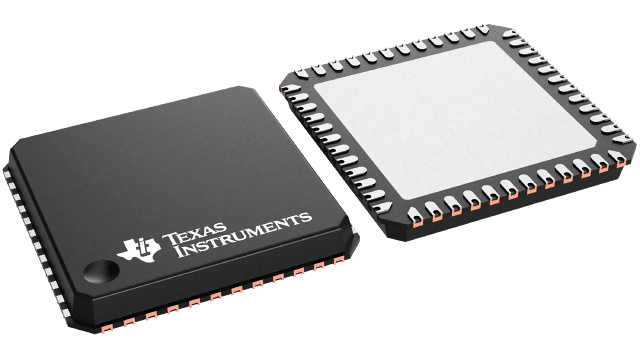

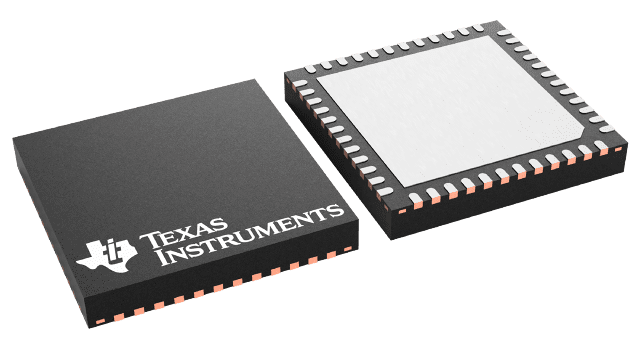

VQFN (RGZ)-48-49 mm² 7 x 7

Features

Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
- Device Temperature Grade 2: –40°C to +105°C Ambient Operating Temperature Range
- Device HBM Classification Level 2
- Device CDM Classification Level C4B
System Voltage Range from 3.135 V to 5.25 V
Low-Power Consumption
- 20 µA in Off Mode
- 90 µA in Sleep Mode With Two SMPSs Active
Five Step-Down Switched-Mode Power Supply (SMPS) Regulators:
- 0.7- to 3.3-V Output Range in 10- or 20-mV Steps
- Two SMPS Regulators With 3.5-A Capability, With the Ability to Combine into 7-A Output in Dual-Phase Configuration, With Differential Remote Sensing (Output and Ground)
- Three Other SMPS Regulators with 3-A, 2-A, and 1.5-A Capabilities
- Dynamic Voltage Scaling (DVS) Control and Output Current Measurement in 3.5-A and 3-A SMPS Regulators
- Hardware and Software Controlled Eco-mode™ Supplying up to 5 mA
- Short-Circuit Protection
- Power-Good Indication (Voltage and Overcurrent Indication)
- Internal Soft-Start for In-Rush Current Limitation
- Ability to Synchronize to External Clock between 1.7 MHz and 2.7 MHz
Five Low-Dropout (LDO) Linear Regulators:
- 0 .9- to 3.3-V Output Range in 50-mV steps
- Two With 300-mA Capability and Bypass Mode
- One With 100-mA Capability and Capable of Low-Noise Performance up to 50 mA
- Two Other LDOs With 200-mA Current Capability
- Short-Circuit Protection
12-Bit Sigma-Delta General-Purpose ADC (GPADC) With 8 Input Channels (2 external)
Thermal Monitoring With High Temperature Warning and Thermal Shutdown
Power Sequence Control:
- Configurable Power-Up and Power-Down Sequences (OTP)
- Configurable Sequences Between the SLEEP and ACTIVE State Transition (OTP)
- Three Digital Output Signals that can be Included in the Startup Sequence
Selectable Control Interface:
- One SPI for Resource Configurations and DVS Control
- Two I²C Interfaces.
  - One Dedicated for DVS Control
  - One General Purpose I²C Interface for Resource Configuration and DVS Control
OTP Bit-Integrity Error Detection With Options to Proceed or Hold Power-Up Sequence and RESET_OUT Release
Package Option:
- 7-mm × 7-mm 48-pin VQFN With 0.5-mm Pitch

Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
- Device Temperature Grade 2: –40°C to +105°C Ambient Operating Temperature Range
- Device HBM Classification Level 2
- Device CDM Classification Level C4B
System Voltage Range from 3.135 V to 5.25 V
Low-Power Consumption
- 20 µA in Off Mode
- 90 µA in Sleep Mode With Two SMPSs Active
Five Step-Down Switched-Mode Power Supply (SMPS) Regulators:
- 0.7- to 3.3-V Output Range in 10- or 20-mV Steps
- Two SMPS Regulators With 3.5-A Capability, With the Ability to Combine into 7-A Output in Dual-Phase Configuration, With Differential Remote Sensing (Output and Ground)
- Three Other SMPS Regulators with 3-A, 2-A, and 1.5-A Capabilities
- Dynamic Voltage Scaling (DVS) Control and Output Current Measurement in 3.5-A and 3-A SMPS Regulators
- Hardware and Software Controlled Eco-mode™ Supplying up to 5 mA
- Short-Circuit Protection
- Power-Good Indication (Voltage and Overcurrent Indication)
- Internal Soft-Start for In-Rush Current Limitation
- Ability to Synchronize to External Clock between 1.7 MHz and 2.7 MHz
Five Low-Dropout (LDO) Linear Regulators:
- 0 .9- to 3.3-V Output Range in 50-mV steps
- Two With 300-mA Capability and Bypass Mode
- One With 100-mA Capability and Capable of Low-Noise Performance up to 50 mA
- Two Other LDOs With 200-mA Current Capability
- Short-Circuit Protection
12-Bit Sigma-Delta General-Purpose ADC (GPADC) With 8 Input Channels (2 external)
Thermal Monitoring With High Temperature Warning and Thermal Shutdown
Power Sequence Control:
- Configurable Power-Up and Power-Down Sequences (OTP)
- Configurable Sequences Between the SLEEP and ACTIVE State Transition (OTP)
- Three Digital Output Signals that can be Included in the Startup Sequence
Selectable Control Interface:
- One SPI for Resource Configurations and DVS Control
- Two I²C Interfaces.
  - One Dedicated for DVS Control
  - One General Purpose I²C Interface for Resource Configuration and DVS Control
OTP Bit-Integrity Error Detection With Options to Proceed or Hold Power-Up Sequence and RESET_OUT Release
Package Option:
- 7-mm × 7-mm 48-pin VQFN With 0.5-mm Pitch

Description

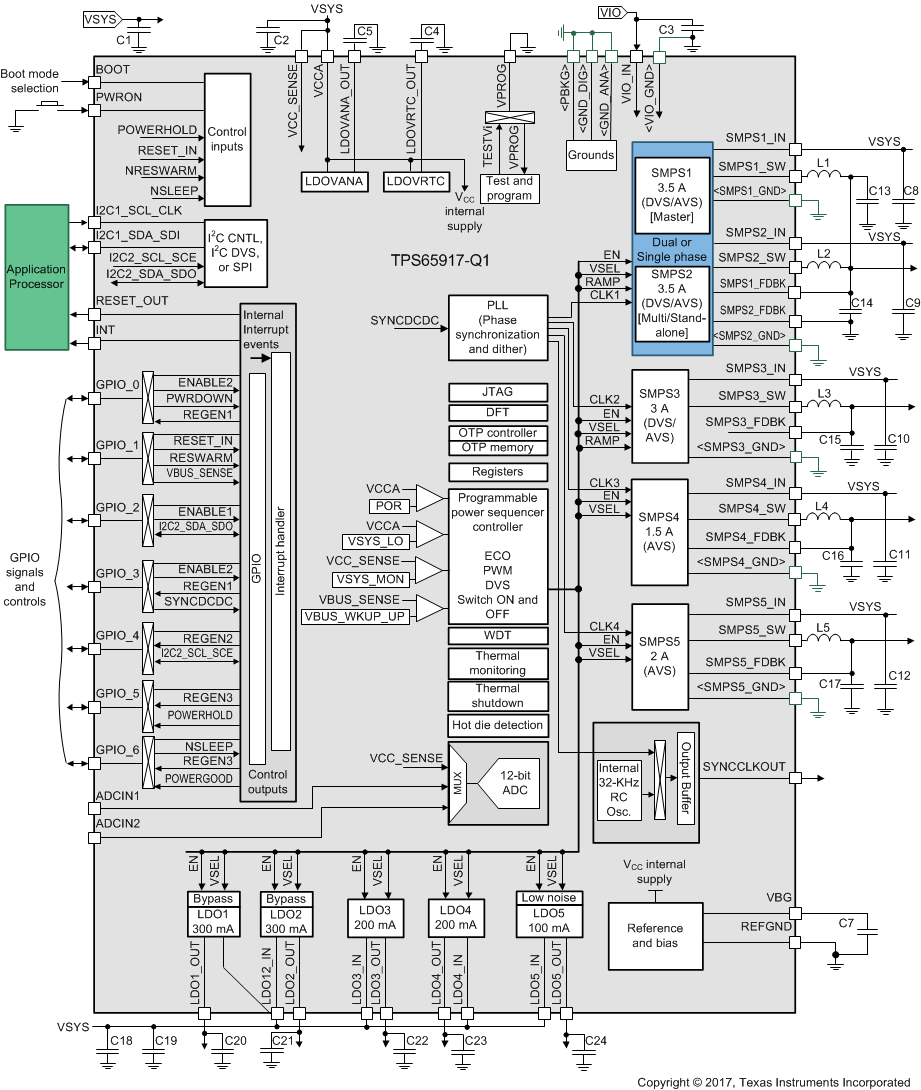

The TPS65917-Q1 PMIC integrates five configurable step-down converters with up to 3.5 A of output current to power the processor core, memory, I/O, and preregulation of LDOs The device is AEC-Q100 qualified. The step-down converters are synchronized to an internal 2.2-MHz clock to improve EMC performance of the device. The GPIO_3 pin allows the step-down converters to synchronize to an external clock, allowing multiple devices to synchronize to the same clock which improves system-level EMC performance. The device also contains five LDOs to power low-current or low-noise domains.

The power-sequence controller uses one-time programmable (OTP) memory to control the power sequences, as well as default configurations such as output voltage and GPIO configurations. The OTP is factory-programmed to allow start-up without any software required. Most static settings can be changed from the default through SPI or I²C to configure the device to meet many different system needs. For example, voltage-scaling registers are used to support dynamic voltage-scaling requirements of processors.As an additional safety feature, the he OTP also contains a bit-integrity-error detection feature to stop the power-up sequence if an error is detected, preventing the system from starting in an unknown state.

The TPS65917-Q1 device also includes an analog-to-digital converter (ADC) to monitor the system state. The GPADC includes two external channels to monitor any external voltage, as well as internal channels to measure supply voltage, output current, and die temperature, allowing the processor to monitor the health of the system. The device offers a watchdog to monitor for software lockup, and includes protection and diagnostic mechanisms such as short-circuit protection, thermal monitoring, shutdown, and automatic ADC conversions to detect if a voltage is below a predefined threshold. The PMIC can notify the processor of these events through the interrupt handler, allowing the processor to take action in response.
