Texas Instruments TPS6287B20 Product Info

Parameters

Rating	Catalog
Topology	Buck, Multiphase, Step-Down Converter, Synchronous Buck
Iout (max) (A)	20
Vin (max) (V)	6
Vin (min) (V)	2.7
Vout (max) (V)	1.675
Vout (min) (V)	0.4
Switch current limit (typ) (A)	28.5
Features	Adaptive/dynamic voltage scaling, Adjustable soft start, Differential Remote Sense, Enable, Fixed Output, Forced PWM, Frequency synchronization, I2C, I2C control, I2C interface, I2C support, Light Load Efficiency, Multiphase, Output discharge, Over Current Protection, Phase Interleaving, Power good, Soft Start, Soft Start Adjustable, Soft-start adjustable, Spread Spectrum Clocking (SSC), Synchronous Rectification, UVLO, Wettable flanks package
EMI features	Frequency Dithering, Low parasitic Hotrod packaging, Spread Spectrum
Control mode	COT, Constant on-time (COT), DCS-Control
Operating temperature range (°C)	-40 to 125
Iq (typ) (A)	0.0021
Duty cycle (max) (%)	75

Package

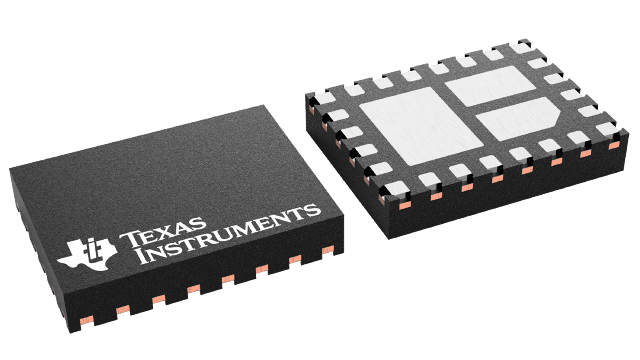

WQFN-FCRLF (RZV)-24-12.3525 mm² 3.05 x 4.05

Features

Input voltage range: 2.7V to 6V
Family of pin-to-pin compatible devices: 10A, 15A, 20A, 25A, and 30A
Three selectable output voltage ranges from 0.4V to 1.675V
- 0.4V to 0.71875V with 1.25mV steps
- 0.4V to 1.0375V with 2.5mV steps
- 0.4V to 1.675V with 5mV steps
Output voltage accuracy: ±0.8%
Internal power MOSFETs: 2.6mΩ and 1.5mΩ
Adjustable soft start
External compensation
Selectable start-up output voltage through the VSET1 and VSET2 pins
- 0.4V to 0.775V with 25mV of steps
- 0.8V to 1.55V with 50mV of steps
Selectable switching frequency of 1.5MHz, 2.25MHz, 2.5MHz, or 3MHz through FSEL pin only for TPS6287BxxJE2 (see Table 4-2)
Forced PWM or power-save mode operation
Start-up output voltage selection by external resistor or I2C
I2C-compatible interface with up to 3.4MHz
Optional stacked operation for increased output current capability
Differential remote sense
Thermal pre-warning and thermal shutdown
Output discharge
Optional spread spectrum clocking
Power-good output with window comparator

Input voltage range: 2.7V to 6V
Family of pin-to-pin compatible devices: 10A, 15A, 20A, 25A, and 30A
Three selectable output voltage ranges from 0.4V to 1.675V
- 0.4V to 0.71875V with 1.25mV steps
- 0.4V to 1.0375V with 2.5mV steps
- 0.4V to 1.675V with 5mV steps
Output voltage accuracy: ±0.8%
Internal power MOSFETs: 2.6mΩ and 1.5mΩ
Adjustable soft start
External compensation
Selectable start-up output voltage through the VSET1 and VSET2 pins
- 0.4V to 0.775V with 25mV of steps
- 0.8V to 1.55V with 50mV of steps
Selectable switching frequency of 1.5MHz, 2.25MHz, 2.5MHz, or 3MHz through FSEL pin only for TPS6287BxxJE2 (see Table 4-2)
Forced PWM or power-save mode operation
Start-up output voltage selection by external resistor or I2C
I2C-compatible interface with up to 3.4MHz
Optional stacked operation for increased output current capability
Differential remote sense
Thermal pre-warning and thermal shutdown
Output discharge
Optional spread spectrum clocking
Power-good output with window comparator

Description

The TPS6287B10, TPS6287B15, TPS6287B20, TPS6287B25, and TPS6287B30 are a family of pin-to-pin, 10A, 15A, 20A, 25A, and 30A synchronous step-down DC/DC converters with I2C interface and differential remote sense. All devices offer high efficiency and ease of use. Low-resistance power switches allow up to 30A output current at high ambient temperature. The devices can operate in stacked mode to deliver higher output currents or to spread the power dissipation across multiple devices.

The TPS6287Bxx family implements a fixed-frequency DCS-Control scheme that supports a fast transient response. The devices can operate in power-save mode for maximum efficiency or forced-PWM mode for best transient performance and lowest output voltage ripple.

An optional remote sensing feature maximizes voltage regulation at the point-of-load, and the device achieves ±0.8% DC voltage accuracy for the full output voltage range.

The I2C compatible interface offers several control, monitoring and warning features, such as voltage monitoring and temperature related warnings. The output voltage can be quickly adjusted to adapt the load´s power consumption to the performance needs. The default start-up voltage is resistor selectable through the VSET1 and VSET2 pins.

The TPS6287B10, TPS6287B15, TPS6287B20, TPS6287B25, and TPS6287B30 are a family of pin-to-pin, 10A, 15A, 20A, 25A, and 30A synchronous step-down DC/DC converters with I2C interface and differential remote sense. All devices offer high efficiency and ease of use. Low-resistance power switches allow up to 30A output current at high ambient temperature. The devices can operate in stacked mode to deliver higher output currents or to spread the power dissipation across multiple devices.

The TPS6287Bxx family implements a fixed-frequency DCS-Control scheme that supports a fast transient response. The devices can operate in power-save mode for maximum efficiency or forced-PWM mode for best transient performance and lowest output voltage ripple.

An optional remote sensing feature maximizes voltage regulation at the point-of-load, and the device achieves ±0.8% DC voltage accuracy for the full output voltage range.

The I2C compatible interface offers several control, monitoring and warning features, such as voltage monitoring and temperature related warnings. The output voltage can be quickly adjusted to adapt the load´s power consumption to the performance needs. The default start-up voltage is resistor selectable through the VSET1 and VSET2 pins.
