• 16 LED Drivers (Each Output Programmable at
  OFF, ON, LED Brightness, and Group
  Dimming/Blinking Mixed With Individual LED
  Brightness)
• 16 Open-Drain Output Channels
• 256-Step (8-Bit) Linear Programmable Brightness
  Per LED Output Varying From Fully OFF (Default)
  to Maximum Brightness Using a 97-kHz PWM Signal
• 256-Step Group Brightness Control Allows
  General Dimming (Using a 190-Hz PWM Signal
  From Fully OFF to Maximum Brightness (Default)
• 256-Step Group Blinking With Frequency
  Programmable From 24 Hz to 10.73 s and Duty
  Cycle from 0% to 99.6%
• Four Hardware Address Pins Allow 14
  TLC59116F Devices to be Connected to the
  Same I²C Bus
• Four Software-Programmable I²C Bus Addresses
  (One LED Group Call Address and Three LED
  Sub-Call Addresses) Allow Groups of Devices to
  be AddressedSimultaneously in Any Combination
  (For example, One Register Used for ‘All Call’ So
  All the TLC59116Fs on the I²C Bus Can be
  Addressed at the Same Time and the Second
  Register Used for Three Different Addresses So
  That 1/3 of all Devices on the Bus Can Be
  Addressed at the Same Time in a Group).
  Software Enable and Disable for I²C Bus Address.
• Software Reset Feature (SWRST Call) Allows the
  Device to be Reset Through the I²C Bus
• Up to 14 Possible Hardware Adjustable Individual
  I²C Bus Addresses Per Device so That Each
  Device Can be Programmed
• Output State Change Programmable on the
  Acknowledge or the STOP Command to Update
  Outputs Byte-by-Byte or All at the Same Time
  (Default to Change on STOP.
• 120-mA Maximum Output Current
• 17-V Maximum Output Voltage
• 25-MHz Internal Oscillator Requires No External Components
• 1-MHz Fast-Mode Plus (FM+) Compatible I²C Bus
  Interface With 30 mA High Drive Capability on
  SDA Output for Driving High Capacity Buses
• Internal Power-On Reset
• Noise Filter on SCL/SDA Inputs
• No Glitch on Power Up
• Active-Low Reset
• Supports Hot Insertion
• Low Standby Current
• 3.3-V or 5-V Supply Voltage
• 5.5-V Tolerant Inputs

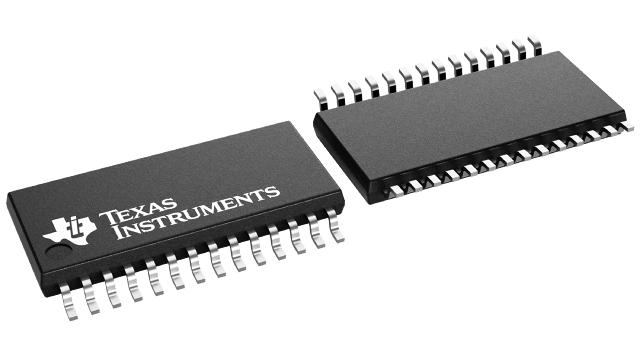

• 28-Pin TSSOP (PW)
• –40°C to 85°C Operation
• APPLICATIONS
  • Gaming
  • Small Signage
  • Industrial Equipment
