ACTIVE
Rating |
Catalog |
Topology |
Buck |
Iout (max) (A) |
20 |
Vin (max) (V) |
28 |
Vin (min) (V) |
3 |
Vout (max) (V) |
2.6 |
Vout (min) (V) |
0.6 |
Control mode |
D-CAP |
Features |
Dynamic voltage scaling, Enable, Light-load efficiency, Power good, Prebias startup, Synchronous rectification |
Duty cycle (max) (%) |
89 |
Iq (typ) (A) |
0.00032 |
Number of phases |
1 |
Operating temperature range (°C) |
-40 to 85 |
WSON (DSC)-10-9 mm² 3 x 3

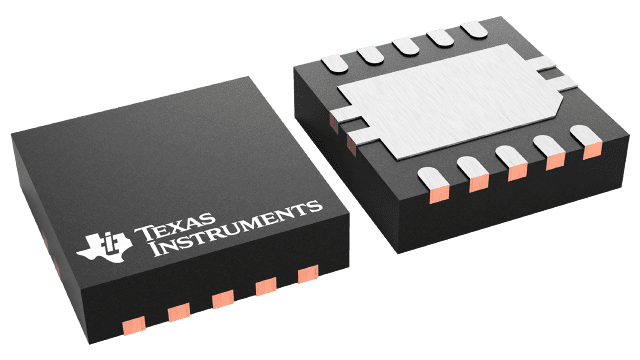

The TPS51217 is a small-sized single buck controller with adaptive on-time D-CAP™ mode. The device is suitable for low output voltage, high current, PC system power rail and similar point-of-load (POL) power supply in digital consumer products. A small package with minimal pin-count saves space on the PCB, while a dedicated EN pin and pre-set frequency minimize design effort required for new designs. The skip-mode at light load condition, strong gate drivers and low-side FET RDS(on) current sensing supports low-loss and high efficiency, over a broad load range. The TRAN pin provides freedom of masking overvoltage protection, undervoltage protection and power-good signal during the transition period of dynamic output voltage change for modern GPU power supply applications. The conversion input voltage which is the high-side FET drain voltage ranges from 3 V to 28 V and the output voltage ranges from 0.6 V to 2.6 V. The device requires an external 5-V supply. The TPS51217 is available in a 10-pin SON package specified from –40°C to 85°C.
