TPS26750
  • TPS26750
  • TPS26750
  • TPS26750

TPS26750

ACTIVE

USB Type-C® and USB Power Delivery (PD) 3.2 controller with 240W extended power-range support

Texas Instruments TPS26750 Product Info

1 April 2026 4

Parameters

Function

Type-C

Type

PD controller

Power role

DRP, Sink, Source

Rating

Catalog

Internal power path

5 V 3 A

Data role

DFP, DRD, DRP

Alternate mode

No

External power-path control

GPIO

Dead battery support

Yes

Operating temperature range (°C)

-40 to 125

Package

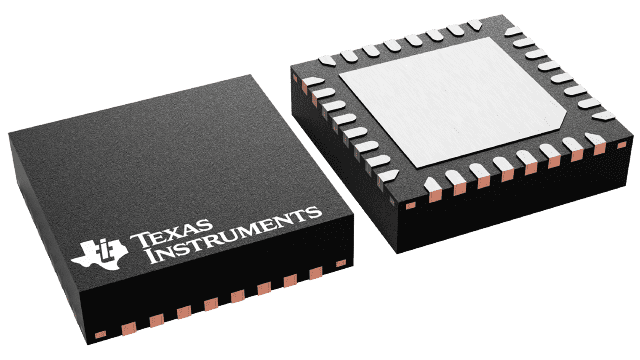

VQFN (RSM)-32-16 mm² 4 x 4

Features

  • This device is certified by the USB-IF for PD3.1
    • PD3.1 silicon is required for certification of new USB PD designs
    • TPS26750 TID#: 11450
    • Article on PD2.0 vs. PD3.0
  • Optimized for USB Type-C PD power applications
    • Integrated I2C control for TI battery chargers
      • Ex: In Development
    • Web-based GUI and pre-configured firmware
    • For a more extensive selection guide and getting started information, please refer to www.ti.com/usb-c and E2E guide
  • Extended Power Range (EPR)
    • Supports EPR source and sink
    • EPR 28V, 36V, 48V, and AVS
  • Programmable Power Supply(PPS)
    • Supports PPS source and sink
    • Standalone PPS source control TI battery chargers
    • Programmable interface for PPS sink
  • Liquid Detection
    • Measures directly at the Type-C connector
    • Integrated error handling and protection
  • Integrated fully managed power path & protection
    • Integrated 5V, 3A, and 36mΩ sourcing switch
    • Integrated undervoltage and overvoltage protection and current limiting for inrush current protection for the 5V and 3A source power path
    • 26V tolerant CC pins for robust protection when connected to non-compliant devices
  • USB Type-C Power Delivery (PD) controller
    • 10 configurable GPIOs
    • BC1.2 charging support
    • 3.3V LDO output for dead battery support
    • Power supply from 3.3V or VBUS source
    • 1 I2C primary port
    • 1 I2C secondary port
  • This device is certified by the USB-IF for PD3.1
    • PD3.1 silicon is required for certification of new USB PD designs
    • TPS26750 TID#: 11450
    • Article on PD2.0 vs. PD3.0
  • Optimized for USB Type-C PD power applications
    • Integrated I2C control for TI battery chargers
      • Ex: In Development
    • Web-based GUI and pre-configured firmware
    • For a more extensive selection guide and getting started information, please refer to www.ti.com/usb-c and E2E guide
  • Extended Power Range (EPR)
    • Supports EPR source and sink
    • EPR 28V, 36V, 48V, and AVS
  • Programmable Power Supply(PPS)
    • Supports PPS source and sink
    • Standalone PPS source control TI battery chargers
    • Programmable interface for PPS sink
  • Liquid Detection
    • Measures directly at the Type-C connector
    • Integrated error handling and protection
  • Integrated fully managed power path & protection
    • Integrated 5V, 3A, and 36mΩ sourcing switch
    • Integrated undervoltage and overvoltage protection and current limiting for inrush current protection for the 5V and 3A source power path
    • 26V tolerant CC pins for robust protection when connected to non-compliant devices
  • USB Type-C Power Delivery (PD) controller
    • 10 configurable GPIOs
    • BC1.2 charging support
    • 3.3V LDO output for dead battery support
    • Power supply from 3.3V or VBUS source
    • 1 I2C primary port
    • 1 I2C secondary port

Description

The TPS26750 is a highly integrated stand-alone USB Type-C and Power Delivery (PD) controller optimized for applications supporting USB-C PD Power. The TPS26750 integrates fully managed power paths with robust protection for a complete USB-C PD solution. The TPS26750 also integrates control for external battery charger ICs for added ease of use and reduced time to market. The intuitive web based GUI asks the user a few simple questions on the applications needs using clear block diagrams and simple multiple-choice questions. As a result, the GUI will create the configuration image for the user’s application, reducing much of the complexity associated with competitive USB PD solutions.
