ACTIVE
Product type |
Fixed current limit, Power switch |
Rating |
Catalog |
Continuous current (max) (A) |
0.5 |
Current limit (A) |
1 |
Number of switches |
1 |
Enable |
Active High |
Vin (max) (V) |
5.5 |
Vin (min) (V) |
2.7 |
Operating temperature range (°C) |
-40 to 125 |
Current limit accuracy at 1 A |
0.3 |
SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8

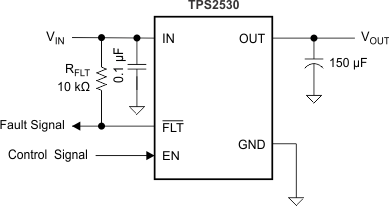

The TPS2530 power-distribution switch is intended for applications such as DisplayPort or USB Port where heavy capacitive loads and short-circuits are likely to be encountered. It offers 0.5 A fixed current-limit thresholds.
The TPS2530 limits the output current to a safe level by operating in a constant-current mode when the output load exceeds the current-limit threshold. This provides a predictable fault current under all conditions. The fast overload response time eases the burden on the main supply to provide regulated power when the output is shorted. The power-switch rise and fall times are controlled to minimize current surges during turn-on and turn-off.
