TPS65951
  • TPS65951
  • TPS65951

TPS65951

ACTIVE

Integrated power management IC (PMIC) audio codec silicon

Texas Instruments TPS65951 Product Info

1 April 2026 1

Parameters

Processor supplier

Texas Instruments

Processor name

OMAP

Product type

Processor and FPGA

Regulated outputs (#)

14

Step-down DC/DC converter

3

Step-up DC/DC converter

0

LDO

11

Vin (min) (V)

2.7

Vin (max) (V)

5.5

Vout (min) (V)

0.6

Vout (max) (V)

3.15

Iout (max) (A)

1.4

Configurability

Factory programmable

TI functional safety category

Functional Safety-Capable

Features

Comm control, Power sequencing

Rating

Catalog

Operating temperature range (°C)

-40 to 85

Step-down DC/DC controller

0

Step-up DC/DC controller

0

Iq (typ) (mA)

0.03

Switching frequency (typ) (kHz)

3200

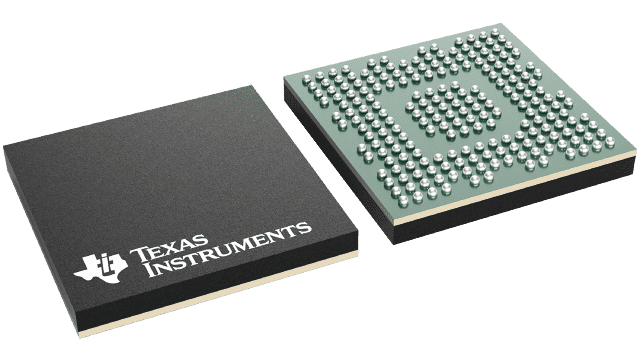

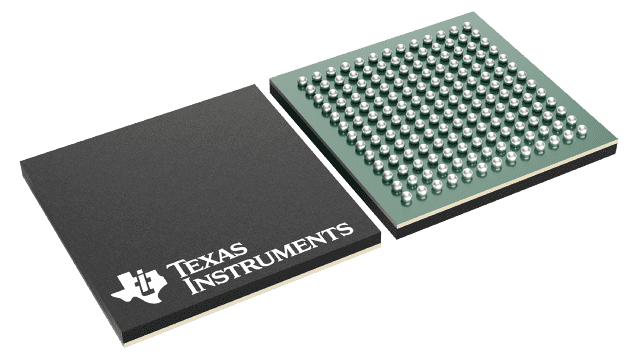

Package

NFBGA (ZWS)-169-144 mm² 12 x 12

Features

  • Power:
    • Three Efficient Step-down Converters
    • 10 External Linear LDOs for Clocks and Peripherals
    • SmartReflex Dynamic Voltage Management
  • Audio:
    • Voice Codec
    • 15-Bit Linear Codec (8 and 16 kHz)
    • Differential Input Main and Submicrophones
    • Differential Headset Microphone Input
    • Auxiliary/FM Input (Mono or Stereo)
    • Differential 32-Ω Speaker and 16-Ω Headset Drivers (External Predrivers for Class D)
    • 8-Ω Stereo Class-D Drivers
    • Pulse Code Modulation (PCM) and TDM Interfaces
    • Interface
    • Automatic Level Control (ALC)
    • Digital and Analog Mixing
    • 16-Bit Linear Audio Stereo DAC (96, 48, 44.1, and 32 kHz, and Derivatives)
    • 16-Bit Linear Audio Stereo ADC (48, 44.1, and 32 kHz, and Derivatives)
    • Carkit
  • Charger:
    • Li-ion, Li-on Polymer, and Cobalt-Nickel-Manganese Charger
    • Backup Battery Charger
  • USB:
    • USB 2.0 OTG-Compliant HS Transceivers
    • 12-Bit ULPI
    • USB Power Supply (5-V CP for VBUS)
    • CEA-2011: OTG Transceiver Interface Specification
    • CEA-936A: Mini-USB Analog Carkit Interface Specification
  • Additional Features:
    • LED Driver Circuit for Two External LEDs
    • RTC and Retention Modules
    • HS Inter-Integrated Circuit (I2C) Serial Control
    • Thermal Shutdown and Hot-Die Detection
    • External Vibrator (Vibrator) Control
    • 19 GPIO Devices
    • 0.8-mm Pitch, 169-Pin, 12-mm × 12-mm Package
  • Power:
    • Three Efficient Step-down Converters
    • 10 External Linear LDOs for Clocks and Peripherals
    • SmartReflex Dynamic Voltage Management
  • Audio:
    • Voice Codec
    • 15-Bit Linear Codec (8 and 16 kHz)
    • Differential Input Main and Submicrophones
    • Differential Headset Microphone Input
    • Auxiliary/FM Input (Mono or Stereo)
    • Differential 32-Ω Speaker and 16-Ω Headset Drivers (External Predrivers for Class D)
    • 8-Ω Stereo Class-D Drivers
    • Pulse Code Modulation (PCM) and TDM Interfaces
    • Interface
    • Automatic Level Control (ALC)
    • Digital and Analog Mixing
    • 16-Bit Linear Audio Stereo DAC (96, 48, 44.1, and 32 kHz, and Derivatives)
    • 16-Bit Linear Audio Stereo ADC (48, 44.1, and 32 kHz, and Derivatives)
    • Carkit
  • Charger:
    • Li-ion, Li-on Polymer, and Cobalt-Nickel-Manganese Charger
    • Backup Battery Charger
  • USB:
    • USB 2.0 OTG-Compliant HS Transceivers
    • 12-Bit ULPI
    • USB Power Supply (5-V CP for VBUS)
    • CEA-2011: OTG Transceiver Interface Specification
    • CEA-936A: Mini-USB Analog Carkit Interface Specification
  • Additional Features:
    • LED Driver Circuit for Two External LEDs
    • RTC and Retention Modules
    • HS Inter-Integrated Circuit (I2C) Serial Control
    • Thermal Shutdown and Hot-Die Detection
    • External Vibrator (Vibrator) Control
    • 19 GPIO Devices
    • 0.8-mm Pitch, 169-Pin, 12-mm × 12-mm Package

Description

The TPS65951 device is a power-management IC for mobile cellular handsets powered by a Li-ion, Li-ion polymer, or cobalt-nickel-manganese cell battery. The device can be connected to an application processor and/or a modem. This optimized power-management IC is designed to support the specific power requirements of the OMAP processor devices. The TPS65951 contains several buck converters, low dropout (LDO) regulators, a battery charger interface, and a host of other features and functions. The audio portion of the TPS65951 is an entire audio module with audio codecs, digital filters, input preamplifiers and amplifiers, and class-D output amplifiers.

This TPS65951 Data Manual presents the electrical and mechanical specifications for the TPS65951 device.

The TPS65951 device is a power-management IC for mobile cellular handsets powered by a Li-ion, Li-ion polymer, or cobalt-nickel-manganese cell battery. The device can be connected to an application processor and/or a modem. This optimized power-management IC is designed to support the specific power requirements of the OMAP processor devices. The TPS65951 contains several buck converters, low dropout (LDO) regulators, a battery charger interface, and a host of other features and functions. The audio portion of the TPS65951 is an entire audio module with audio codecs, digital filters, input preamplifiers and amplifiers, and class-D output amplifiers.

This TPS65951 Data Manual presents the electrical and mechanical specifications for the TPS65951 device.
