TPS2458
  • TPS2458
  • TPS2458

TPS2458

ACTIVE

3-V to 15-V hot swap controller with Oring and Load current monitor

Texas Instruments TPS2458 Product Info

1 April 2026 3

Parameters

Vabsmax_cont (V)

17

Vin (max) (V)

15

Vin (min) (V)

8.5

Current limit (min) (A)

0.01

Features

Adjustable current limit, Adjustable soft start, Current monitoring, Fault output, Overcurrent protection, Power good signal, Reverse current blocking always, Short circuit protection, Thermal shutdown, adjustable UVLO

Overcurrent response

Circuit breaker, Current limiting

Fault response

Latch-off

Rating

Catalog

Soft start

Adjustable

Quiescent current (Iq) (typ) (A)

0.000001

Quiescent current (Iq) (max) (A)

0.000005

Device type

eFuses and hot swap controllers

Operating temperature range (°C)

-40 to 85

Package

VQFN (RHB)-32-25 mm² 5 x 5

Features

  • ATCA AdvancedMC™ Compliant
  • Full Power Control for an AdvancedMC™ Module
  • Programmable 12-V Current Limit and Fast Trip
  • Optional 12-V ORing Control for MicroTCA™
  • Internal 3.3-V Current Limit
  • Programmable Shunt Gain
  • Interlock Requires 3.3-V Output Prior to 12 V
  • 12-V and 3-V Power Good and Fault Outputs
  • Load Current Monitor
  • 32-Pin PQFN Package
  • APPLICATIONS
    • ATCA Carrier Boards
    • MicroTCA™ Power Modules
    • AdvancedMC™ Slots
    • Systems Using 12 V and 3.3 V
    • Base Stations

AdvancedMC is a trademark of Texas Instruments.
MicroTCA is a trademark of Texas Instruments

  • ATCA AdvancedMC™ Compliant
  • Full Power Control for an AdvancedMC™ Module
  • Programmable 12-V Current Limit and Fast Trip
  • Optional 12-V ORing Control for MicroTCA™
  • Internal 3.3-V Current Limit
  • Programmable Shunt Gain
  • Interlock Requires 3.3-V Output Prior to 12 V
  • 12-V and 3-V Power Good and Fault Outputs
  • Load Current Monitor
  • 32-Pin PQFN Package
  • APPLICATIONS
    • ATCA Carrier Boards
    • MicroTCA™ Power Modules
    • AdvancedMC™ Slots
    • Systems Using 12 V and 3.3 V
    • Base Stations

AdvancedMC is a trademark of Texas Instruments.
MicroTCA is a trademark of Texas Instruments

Description

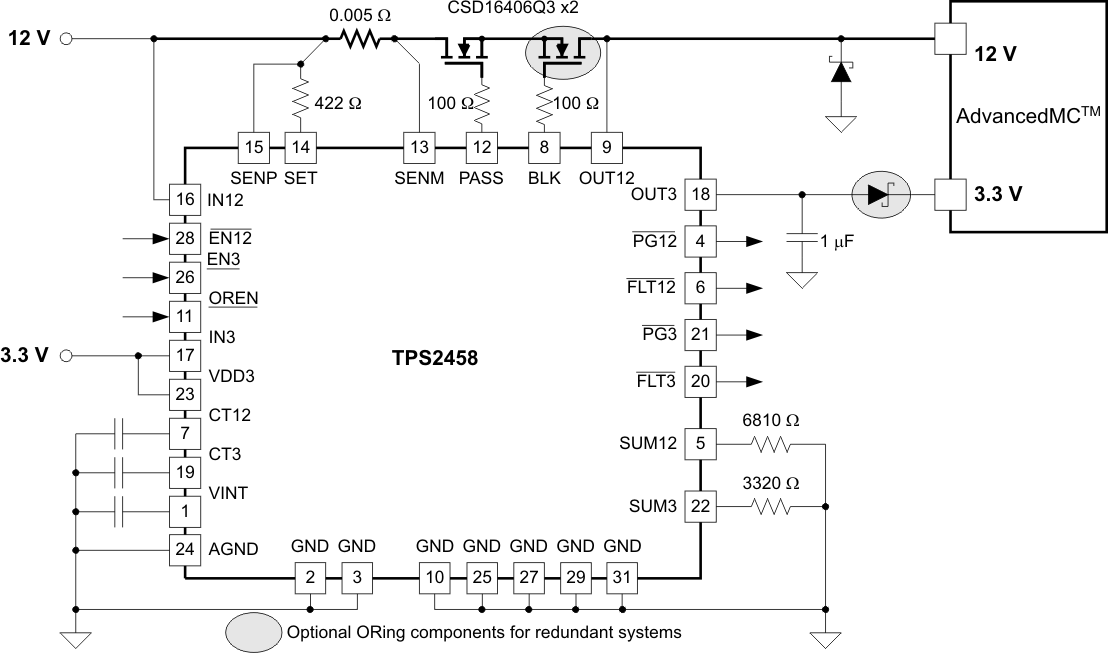

The TPS2458 AdvancedMC™ slot controller is fully compliant with the AdvancedMC™ Standard and provides the required accuracy to meet the demands of an AdvancedMC™ (Advanced Mezzanine Card) module.

The TPS2458 is an extremely flexible solution that protects both the power supply and the load by limiting the maximum current into the load and shutting off in case of a fault. If a severe fault occurs the current shuts off immediately.

Optional ORing support is inherent in the architecture and can be used in MicroTCA™, or other applications requiring ORing support.

The 3.3-V management channel is internal and requires only one external resistor for load monitoring and one external capacitor to set fault time. To comply with the AdvancedMC™ requirements, the 12-V output is disabled unless the 3.3-V Power Good signal is asserted. Load current monitors are provided for both the 12 V and 3.3 V channels. Status outputs include Power Good and Fault indicators for each channel. The TPS2458 is in a 32-pin PQFN package.
