LMS33460

ACTIVE

Ultra-low power, space-saving 3-V undervoltage detector

Texas Instruments LMS33460 Product Info

1 April 2026 2

Parameters

Rating

Catalog

Number of supplies monitored

1

Threshold voltage 1 (typ) (V)

3

Features

Undervoltage monitor only

Reset threshold accuracy (%)

5

Iq (typ) (mA)

0.001

Output driver type/reset output

Active-low, Open-drain

Time delay (ms)

0

Watchdog timer WDI (s)

None

Supply voltage (min) (V)

0.8

Supply voltage (max) (V)

7

Operating temperature range (°C)

-40 to 85

Package

SOT-SC70 (DCK)-5-4.2 mm² 2 x 2.1

Features

  • Ultra-Low Power
  • 3-V Detection
  • Input Voltage From 0.8 V to 7 V
  • Open-Drain Output
  • Ultra-Small 5-Pin SC70 Package
  • Extended Temperature Range (–40°C to 85°C)
  • Ultra-Low Quiescent Current (1 µA Typical)
  • Ultra-Low Power
  • 3-V Detection
  • Input Voltage From 0.8 V to 7 V
  • Open-Drain Output
  • Ultra-Small 5-Pin SC70 Package
  • Extended Temperature Range (–40°C to 85°C)
  • Ultra-Low Quiescent Current (1 µA Typical)

Description

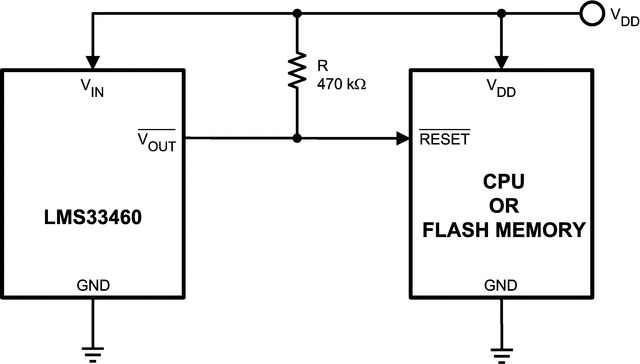

The LMS33460 device is an undervoltage detector with a 3‑V threshold and extremely low power consumption. The LMS33460 is specifically designed to accurately monitor power supplies. It is especially suited to battery-powered systems where low quiescent current and small size are required. This IC generates an active output whenever the input voltage drops below 3 V.

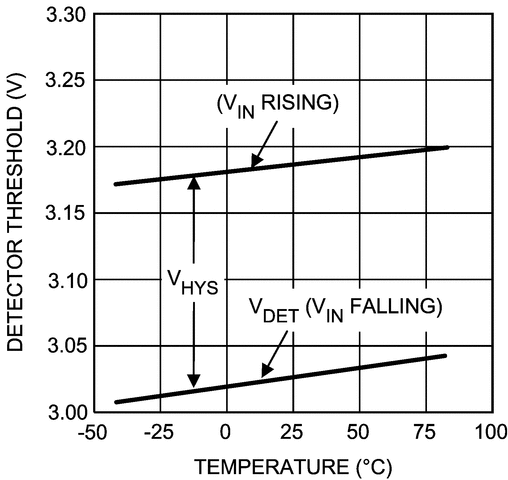

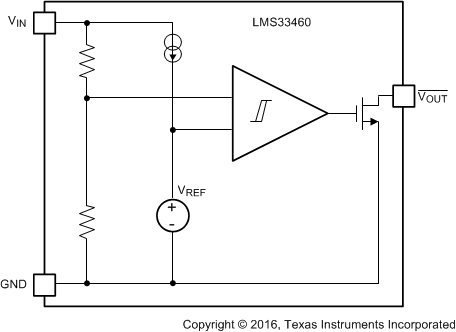

This part uses a precision on-chip voltage reference and a comparator to measure the input voltage. Built-in hysteresis helps to prevent erratic operation in the presence of noise. The UVD is available in the ultra-miniature 5-pin SC70 package.
