TPS22934
  • TPS22934
  • TPS22934

TPS22934

ACTIVE

3.6-V, 1-A, 63-mΩ load switch with output discharge

Texas Instruments TPS22934 Product Info

1 April 2026 0

Parameters

Imax (A)

1

Vin (max) (V)

3.6

Vin (min) (V)

1.5

Number of channels

1

Features

Inrush current control, Quick output discharge, Under voltage lock out

Quiescent current (Iq) (typ) (µA)

3.5

Soft start

Fixed Rise Time

Rating

Catalog

Ron (typ) (mΩ)

63

Shutdown current (ISD) (typ) (µA)

2.5

Current limit type

None

Function

Inrush current control

FET

Internal

Operating temperature range (°C)

-40 to 85

Device type

Load switches

Package

DSBGA (YZV)-4-1.5625 mm² 1.25 x 1.25

Features

  • Integrated Single Channel Load Switch
  • Input Voltage: 1.5 V to 3.6 V
  • ON-Resistance
    • rDS(ON) = 63 mΩ at VIN = 3.6 V
    • rDS(ON) = 69 mΩ at VIN = 2.5 V
    • rDS(ON) = 78 mΩ at VIN = 1.8 V
    • rDS(ON) = 87 mΩ at VIN = 1.5 V
  • 1-A Maximum Continuous Switch Current
  • Integrated Hysteresis Enable Input (ON Pin)
    Allows Easy Power-Rail Sequencing
  • Controlled Slew Rate Option: 26 µs at 3.6 V
  • Quick Output Discharge Transistor
  • Ultra-Small CSP-4 Package
  • ESD Performance Tested Per JESD 22
    • 3000-V Human-Body Model
      (A114-B, Class II)
    • 1000-V Charged-Device Model (C101)
  • APPLICATIONS
    • Battery-Powered Equipment
    • Portable Industrial Equipment
    • Portable Medical Equipment
    • Portable Media Players
    • Point-of-Sales Terminals
    • GPS Devices
    • Digital Cameras
    • Portable Instrumentation
    • Smart Phones

All other trademarks are the property of their respective owners

  • Integrated Single Channel Load Switch
  • Input Voltage: 1.5 V to 3.6 V
  • ON-Resistance
    • rDS(ON) = 63 mΩ at VIN = 3.6 V
    • rDS(ON) = 69 mΩ at VIN = 2.5 V
    • rDS(ON) = 78 mΩ at VIN = 1.8 V
    • rDS(ON) = 87 mΩ at VIN = 1.5 V
  • 1-A Maximum Continuous Switch Current
  • Integrated Hysteresis Enable Input (ON Pin)
    Allows Easy Power-Rail Sequencing
  • Controlled Slew Rate Option: 26 µs at 3.6 V
  • Quick Output Discharge Transistor
  • Ultra-Small CSP-4 Package
  • ESD Performance Tested Per JESD 22
    • 3000-V Human-Body Model
      (A114-B, Class II)
    • 1000-V Charged-Device Model (C101)
  • APPLICATIONS
    • Battery-Powered Equipment
    • Portable Industrial Equipment
    • Portable Medical Equipment
    • Portable Media Players
    • Point-of-Sales Terminals
    • GPS Devices
    • Digital Cameras
    • Portable Instrumentation
    • Smart Phones

All other trademarks are the property of their respective owners

Description

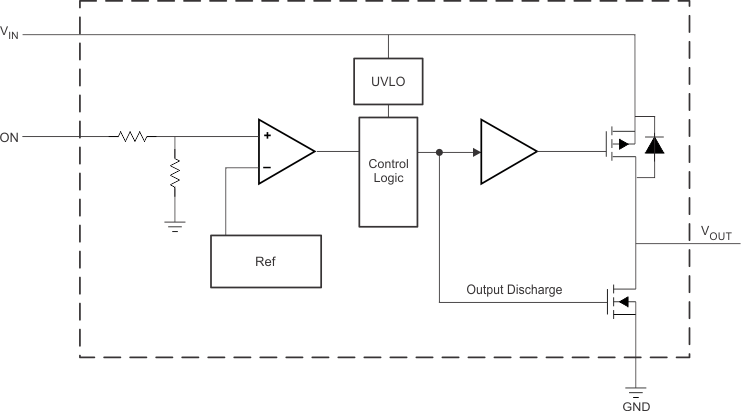

The TPS22934 is a small, low ON-resistance (rON) load switch with controlled turnon. The devices contain a P-channel MOSFETs that can operate over an input voltage range of 1.5 V to 3.6 V.

The switch is controlled by an ON/OFF input (ON), which has built-in hysteresis (VTH+(typ) = 2.35 V) allowing an easy use of TPS22934 in power-rail sequencing applications.

In the TPS22934 a 35-Ω on-chip load resistor is added for output quick discharge when switch is turned off.

In the TPS22934, the rise time of the device is internally controlled to avoid inrush current. The TPS22934 features a typical rise time of 26 µs with a 3.6-V input.

The the TPS22934 is available in an ultra-small space-saving 4-pin CSP package and is characterized for operation over the free-air temperature range of –40°C to 85°C.

The TPS22934 is a small, low ON-resistance (rON) load switch with controlled turnon. The devices contain a P-channel MOSFETs that can operate over an input voltage range of 1.5 V to 3.6 V.

The switch is controlled by an ON/OFF input (ON), which has built-in hysteresis (VTH+(typ) = 2.35 V) allowing an easy use of TPS22934 in power-rail sequencing applications.

In the TPS22934 a 35-Ω on-chip load resistor is added for output quick discharge when switch is turned off.

In the TPS22934, the rise time of the device is internally controlled to avoid inrush current. The TPS22934 features a typical rise time of 26 µs with a 3.6-V input.

The the TPS22934 is available in an ultra-small space-saving 4-pin CSP package and is characterized for operation over the free-air temperature range of –40°C to 85°C.
