ACTIVE
Technology family |
HC |
Supply voltage (min) (V) |
2 |
Supply voltage (max) (V) |
6 |
Number of channels |
8 |
IOL (max) (mA) |
6 |
IOH (max) (mA) |
-6 |
Supply current (max) (µA) |
80 |
Input type |
Standard CMOS |
Output type |
3-State |
Features |
Balanced outputs, Input clamp diode, Very high speed (tpd 5-10ns) |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |

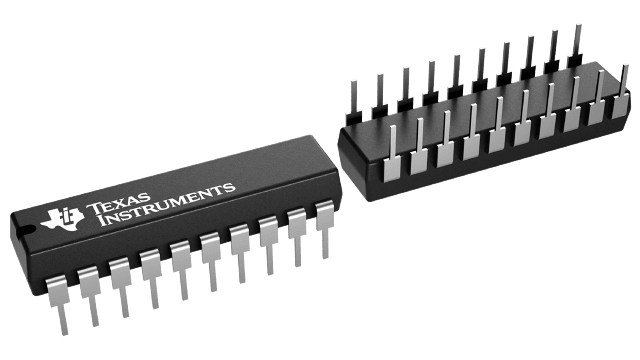

PDIP (N)-20-228.702 mm² 24.33 x 9.4

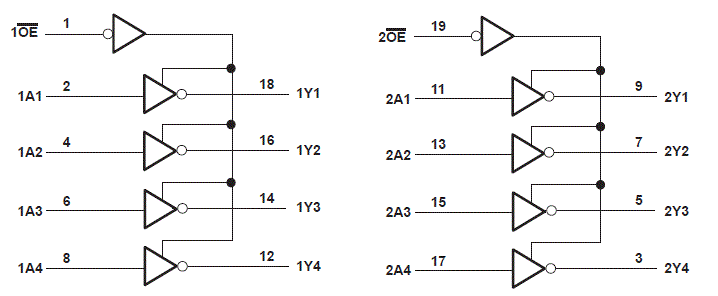

These octal buffers and line drivers are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The ’HC240 devices are organized as two 4-bit buffers/drivers with separate output-enable (OE) inputs. When OE is low, the device passes inverted data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state.
