TPS22810-Q1
  • TPS22810-Q1
  • TPS22810-Q1

TPS22810-Q1

ACTIVE

Automotive 1-channel, 18-V, 2-A, 79-mΩ load switch with adj. rise time and adj. output discharge

Texas Instruments TPS22810-Q1 Product Info

1 April 2026 12

Parameters

Imax (A)

2

Vin (max) (V)

18

Vin (min) (V)

2.7

Number of channels

1

Features

Inrush current control, Quick output discharge, Thermal shutdown, Under voltage lock out

Quiescent current (Iq) (typ) (µA)

62

Soft start

Adjustable Rise Time

Rating

Automotive

Ron (typ) (mΩ)

79

Shutdown current (ISD) (typ) (µA)

0.5

Current limit type

None

Function

Inrush current control, Thermal shutdown

FET

Internal

Operating temperature range (°C)

-40 to 105

Device type

Load switches

Package

SOT-23 (DBV)-6-8.12 mm² 2.9 x 2.8

Features

  • Qualified for Automotive Applications
  • AEC-Q100 Qualified With the Following Results:
    • Device Temperature Grade 2: –40°C to +105°C
      Ambient Operating Temperature
    • Device HBM ESD Classification Level 2
    • Device CDM ESD Classification Level C5
  • Integrated Single Channel Load Switch
  • 2-A Maximum Continuous Current
  • Input Voltage: 2.7 V to 18 V
  • Absolute Maximum Input Voltage: 20 V
  • On-Resistance (RON)
    • RON = 79 mΩ (Typical) at VIN = 12 V
  • Quiescent Current
    • 62 µA (Typical) at VIN = 12 V
  • Shutdown Current
    • 500 nA (Typical) at VIN = 12 V
  • Thermal Shutdown
  • Undervoltage Lock-Out (UVLO)
  • Adjustable Quick Output Discharge (QOD)
  • Configurable Rise Time With CT Pin
  • SOT23-6 Package
    • 2.9-mm × 2.8-mm, 0.95-mm Pitch,
      1.45-mm Height (DBV)
  • Qualified for Automotive Applications
  • AEC-Q100 Qualified With the Following Results:
    • Device Temperature Grade 2: –40°C to +105°C
      Ambient Operating Temperature
    • Device HBM ESD Classification Level 2
    • Device CDM ESD Classification Level C5
  • Integrated Single Channel Load Switch
  • 2-A Maximum Continuous Current
  • Input Voltage: 2.7 V to 18 V
  • Absolute Maximum Input Voltage: 20 V
  • On-Resistance (RON)
    • RON = 79 mΩ (Typical) at VIN = 12 V
  • Quiescent Current
    • 62 µA (Typical) at VIN = 12 V
  • Shutdown Current
    • 500 nA (Typical) at VIN = 12 V
  • Thermal Shutdown
  • Undervoltage Lock-Out (UVLO)
  • Adjustable Quick Output Discharge (QOD)
  • Configurable Rise Time With CT Pin
  • SOT23-6 Package
    • 2.9-mm × 2.8-mm, 0.95-mm Pitch,
      1.45-mm Height (DBV)

Description

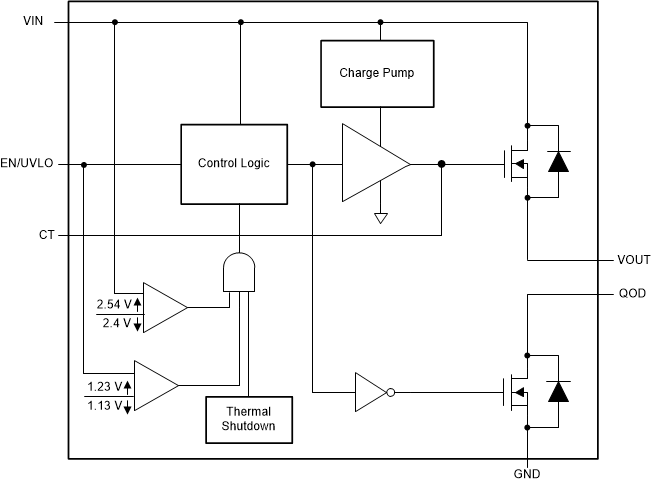

The TPS22810-Q1 is a one channel load switch with configurable rise time and integrated quick output discharge (QOD). The device features thermal shutdown to protect the device against high junction temperature and thereby ensure safe operating area of the device inherently. The device features a N-channel MOSFET that can operate over an input voltage range of 2.7 V to 18 V. The device can support a maximum current of 2 A. The switch is controlled by an on and off input that can interface directly with low-voltage control signals.

The configurable rise time of the device greatly reduces inrush current caused by large bulk load capacitances, thereby reducing or eliminating power supply droop. Undervoltage lock-out is used to turn off the device if the VIN voltage drops below a threshold value, ensuring that the downstream circuitry is not damaged by being supplied by a voltage lower than intended. The configurable QOD pin controls the fall time of the device to allow design flexibility for power down.

The TPS22810-Q1 is available in a leaded, SOT-23 package (DBV) which allows to visually inspect solder joints. The device is characterized for operation over the free-air temperature range of –40˚C to +105˚C.
