TS3USB30
  • TS3USB30
  • TS3USB30

TS3USB30

ACTIVE

High-speed USB 2.0 (480-Mbps) 1:2 multiplexer & demultiplexer switch with single enable

Texas Instruments TS3USB30 Product Info

1 April 2026 3

Parameters

Protocols

USB 2.0

Configuration

2:1 SPDT

Number of channels

2

Bandwidth (MHz)

955

Supply voltage (max) (V)

4.3

Supply voltage (min) (V)

3

Ron (typ) (mΩ)

6000

Input/output voltage (min) (V)

0

Input/output voltage (max) (V)

4.3

Supply current (typ) (µA)

1

ESD HBM (typ) (kV)

6

Operating temperature range (°C)

-40 to 85

Crosstalk (dB)

-56

ESD CDM (kV)

1

Input/output continuous current (max) (mA)

64

COFF (typ) (pF)

2

CON (typ) (pF)

7

Off isolation (typ) (dB)

-39

OFF-state leakage current (max) (µA)

2

Propagation delay time (µs)

0.00025

Ron (max) (mΩ)

10000

Ron channel match (max) (Ω)

0.35

RON flatness (typ) (Ω)

2

Turnoff time (disable) (max) (ns)

25

Turnon time (enable) (max) (ns)

30

VIH (min) (V)

1.3

VIL (max) (V)

0.7

Rating

Catalog

Package

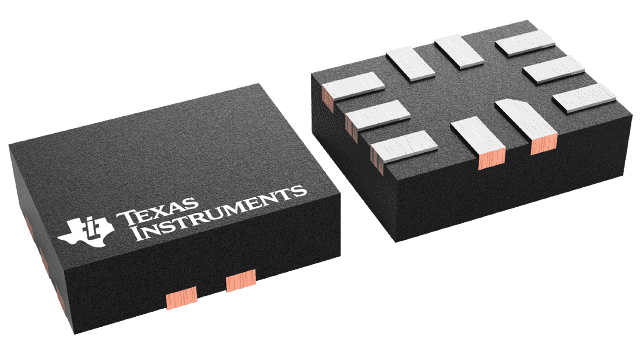

UQFN (RSW)-10-2.52 mm² 1.8 x 1.4

Features

  • VCC Operation at 3 V and 4.3 V
  • 1.8-V Compatible Control-Pin Inputs
  • IOFF Supports Partial Power-Down-Mode
    Operation
  • Ron = 10 Ω Maximum
  • ΔRon <0.35 Ω Typical
  • Cio(ON) = 7 pF Typical
  • Low Power Consumption (1 µA Maximum)
  • ESD Performance Tested Per JESD 22
    • 6000-V Human Body Model (HBM)
      (A114-B, Class II)
    • 1000-V Charged-Device Model (C101)
    • 250-V Machine Model (A115-A)
  • –3-dB Bandwidth = 955 MHz Typical
  • Packaged in 10-pin UQFN (1.4 mm × 1.8 mm)
  • VCC Operation at 3 V and 4.3 V
  • 1.8-V Compatible Control-Pin Inputs
  • IOFF Supports Partial Power-Down-Mode
    Operation
  • Ron = 10 Ω Maximum
  • ΔRon <0.35 Ω Typical
  • Cio(ON) = 7 pF Typical
  • Low Power Consumption (1 µA Maximum)
  • ESD Performance Tested Per JESD 22
    • 6000-V Human Body Model (HBM)
      (A114-B, Class II)
    • 1000-V Charged-Device Model (C101)
    • 250-V Machine Model (A115-A)
  • –3-dB Bandwidth = 955 MHz Typical
  • Packaged in 10-pin UQFN (1.4 mm × 1.8 mm)

Description

The TS3USB30 is a high-bandwidth switch specially designed for the switching of high-speed USB 2.0 signals in handset and consumer applications, such as cell phones, digital cameras, and notebooks with hubs or controllers with limited USB I/Os. The wide bandwidth (955 MHz) of this switch allows signals to pass with minimum edge and phase distortion. The device multiplexes differential outputs from a USB host device to one of two corresponding outputs. The switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. It is designed for low bit-to-bit skew and high channel-to-channel noise isolation, and is compatible with various standards, such as high-speed USB 2.0 (480 Mbps).
