TPS1689

PREVIEW

9V to 80V, 3.5mΩ, 20A stackable integrated hot swap (eFuse) with PMBus digital telemetry

Texas Instruments TPS1689 Product Info

1 April 2026 4

Parameters

Vabsmax_cont (V)	92
Vin (max) (V)	80
Vin (min) (V)	9
Current limit (max) (A)	20
Current limit (min) (A)	2
Features	Adjustable current limit, Adjustable soft start, Current monitoring, Fault output, Overcurrent protection, Overvoltage protection, PMBus, Power good signal, Short-circuit protection, Thermal shutdown
Overcurrent response	Circuit breaker
Fault response	Auto-retry, Latch-off
Ron (typ) (mΩ)	3.5
Overvoltage response	Cut-off
Rating	Catalog
Soft start	Adjustable
Quiescent current (Iq) (typ) (A)	0.004
Device type	eFuses and hot swap controllers
Operating temperature range (°C)	-40 to 125

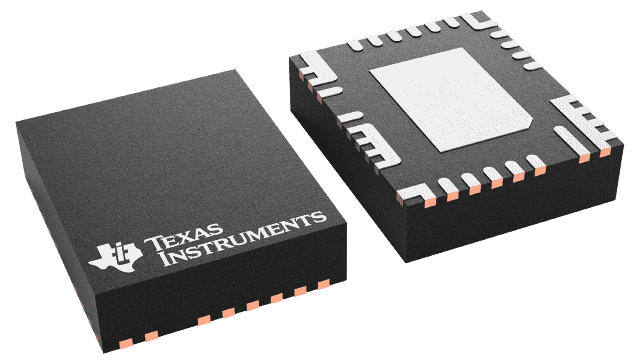

Package

LQFN-CLIP (VMA)-23-30 mm² 5 x 6

Features

Input operating voltage range: 9V to 80V
- 92V absolute maximum rating
- Withstands negative transient voltages up to –5V at output
Integrated FET with low ON-resistance
- RON = 3.5mΩ (typ)
PMBus interface for telemetry, control, configuration, and debug
- PIN/EIN/VIN/VOUT/IIN temperature and fault monitoring
- VIN/VOUT monitoring accuracy: ±0.5%
- Programmable overcurrent protection
  - Adjustable overcurrent threshold: 2A to 20A
  - Programmable transient overcurrent timer (OC_TIMER)
- Programmable slew rate control (dvdt)
- Programmable Power Good/fault/alert indication
- Programmable overtemperature protection
- Internal non-volatile memory for user configuration
- Blackbox fault recording with option to store in external EEPROM
Fast trip response to severe overcurrent (short-circuit) events
Precise analog load current monitoring (IMON)
- <1% error over 50% to 100% of max current
  (TA = 25°C)
Small footprint: QFN 6mm × 5mm
- IPC9592B clearance for 60V

Input operating voltage range: 9V to 80V
- 92V absolute maximum rating
- Withstands negative transient voltages up to –5V at output
Integrated FET with low ON-resistance
- RON = 3.5mΩ (typ)
PMBus interface for telemetry, control, configuration, and debug
- PIN/EIN/VIN/VOUT/IIN temperature and fault monitoring
- VIN/VOUT monitoring accuracy: ±0.5%
- Programmable overcurrent protection
  - Adjustable overcurrent threshold: 2A to 20A
  - Programmable transient overcurrent timer (OC_TIMER)
- Programmable slew rate control (dvdt)
- Programmable Power Good/fault/alert indication
- Programmable overtemperature protection
- Internal non-volatile memory for user configuration
- Blackbox fault recording with option to store in external EEPROM
Fast trip response to severe overcurrent (short-circuit) events
Precise analog load current monitoring (IMON)
- <1% error over 50% to 100% of max current
  (TA = 25°C)
Small footprint: QFN 6mm × 5mm
- IPC9592B clearance for 60V

Description

The TPS1689x is an integrated high current circuit protection and power management solution in a small package. The device provides multiple protection modes using very few external components and is a robust defense against overloads, short circuits and excessive inrush current. The integrated PMBus interface allows a host controller to monitor, control and configure the system in real-time. Key system parameters can be read back for remote telemetry. Various protection/warning thresholds and coefficients can be configured through PMBus or stored in non-volatile configuration memory. An integrated fast and accurate sense analog load current monitor facilitates predictive maintenance and advanced dynamic platform power management such as Intel PSYS and PROCHOT to optimize server and data-center performance. Blackbox fault recording feature helps in debug of field failure/returns. For higher current support, TPS1689x can be connected in parallel with TPS1685x. The devices are characterized for operation over a junction temperature range of –40°C to +125°C.
