ADS7054
  • ADS7054
  • ADS7054

ADS7054

ACTIVE

14-Bit, 1MSPS, Differential Input, Small-Size Low-Power SAR ADC

Texas Instruments ADS7054 Product Info

1 April 2026 0

Parameters

Resolution (Bits)

14

Sample rate (max) (ksps)

1000

Number of input channels

1

Interface type

SPI

Architecture

SAR

Input type

Differential

Rating

Catalog

Reference mode

Supply

Input voltage range (max) (V)

3.6

Input voltage range (min) (V)

0

Features

Small Size

Operating temperature range (°C)

-40 to 125

Power consumption (typ) (mW)

3.6

Analog supply voltage (min) (V)

1.65

Analog supply voltage (max) (V)

3.6

SNR (dB)

79.6

Digital supply (min) (V)

1.65

Digital supply (max) (V)

3.6

Package

X2QFN (RUG)-8-2.25 mm² 1.5 x 1.5

Features

  • 1-MSPS Throughput
  • Small Package Size:
    • X2QFN-8 Package (1.5 mm × 1.5 mm)
  • Fully Differential Input Range: ±AVDD
  • Wide Operating Range:
    • AVDD: 1.65 V to 3.6 V
    • DVDD: 1.65 V to 3.6 V (Independent of AVDD)
    • Temperature Range: –40°C to +125°C
  • Excellent Performance:
    • 14-Bit NMC DNL, ±0.9-LSB INL
    • 79.5-dB SINAD at 2 kHz
    • 76.2-dB SINAD at 200 kHz
  • Low Power Consumption:
    • 1.5 mW at 1 MSPS With 3.3-V AVDD
    • 170 µW at 100 kSPS With 3.3-V AVDD
    • 45 µW at 100 kSPS With 1.8-V AVDD
  • Integrated Offset Calibration
  • SPI-Compatible Serial Interface: 24 MHz
  • JESD8-7A Compliant Digital I/O
  • 1-MSPS Throughput
  • Small Package Size:
    • X2QFN-8 Package (1.5 mm × 1.5 mm)
  • Fully Differential Input Range: ±AVDD
  • Wide Operating Range:
    • AVDD: 1.65 V to 3.6 V
    • DVDD: 1.65 V to 3.6 V (Independent of AVDD)
    • Temperature Range: –40°C to +125°C
  • Excellent Performance:
    • 14-Bit NMC DNL, ±0.9-LSB INL
    • 79.5-dB SINAD at 2 kHz
    • 76.2-dB SINAD at 200 kHz
  • Low Power Consumption:
    • 1.5 mW at 1 MSPS With 3.3-V AVDD
    • 170 µW at 100 kSPS With 3.3-V AVDD
    • 45 µW at 100 kSPS With 1.8-V AVDD
  • Integrated Offset Calibration
  • SPI-Compatible Serial Interface: 24 MHz
  • JESD8-7A Compliant Digital I/O

Description

The ADS7054 device belongs to a family of pin-to-pin compatible, high-speed, low-power, single-channel successive-approximation register (SAR) type analog-to-digital converters (ADCs). The device family includes multiple resolutions, throughputs, and analog input variants (see Table 1 for a list of devices).

The ADS7054 is a 14-bit, 1-MSPS SAR ADC that supports fully-differential inputs in the range of ±AVDD, for AVDD in the range of 1.65 V to 3.6 V.

The internal offset calibration feature maintains excellent offset specifications over the entire AVDD and temperature operating range.

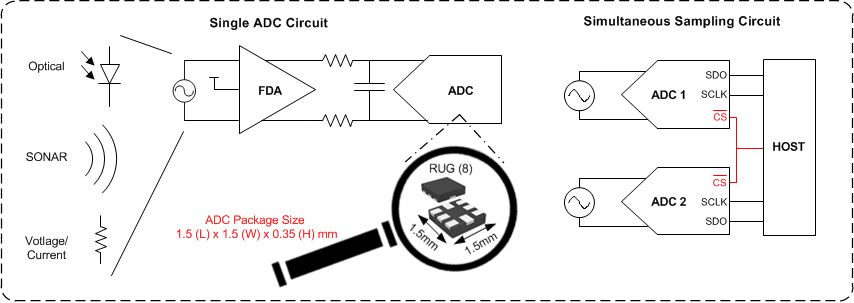

The device supports an SPI-compatible serial interface that is controlled by the CS and SCLK signals. The input signal is sampled with the CS falling edge and SCLK is used for both conversion and serial data output. The device supports a wide digital supply range (1.65 V to 3.6 V), enabling direct interfacing to a variety of host controllers. The ADS7054 complies with the JESD8-7A standard for a normal DVDD range (1.65 V to 1.95 V).

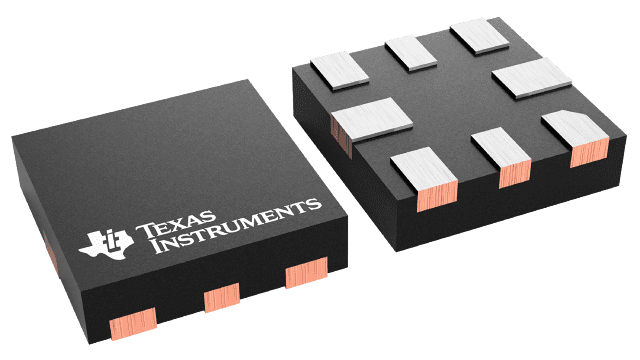

The ADS7054 is available in an 8-pin, small, X2QFN package and is specified over the extended industrial temperature range (–40°C to +125°C). The small form-factor and extremely-low power consumption make this device suitable for space-constrained and battery-powered applications that require high-speed, high-resolution data acquisition.

The ADS7054 device belongs to a family of pin-to-pin compatible, high-speed, low-power, single-channel successive-approximation register (SAR) type analog-to-digital converters (ADCs). The device family includes multiple resolutions, throughputs, and analog input variants (see Table 1 for a list of devices).

The ADS7054 is a 14-bit, 1-MSPS SAR ADC that supports fully-differential inputs in the range of ±AVDD, for AVDD in the range of 1.65 V to 3.6 V.

The internal offset calibration feature maintains excellent offset specifications over the entire AVDD and temperature operating range.

The device supports an SPI-compatible serial interface that is controlled by the CS and SCLK signals. The input signal is sampled with the CS falling edge and SCLK is used for both conversion and serial data output. The device supports a wide digital supply range (1.65 V to 3.6 V), enabling direct interfacing to a variety of host controllers. The ADS7054 complies with the JESD8-7A standard for a normal DVDD range (1.65 V to 1.95 V).

The ADS7054 is available in an 8-pin, small, X2QFN package and is specified over the extended industrial temperature range (–40°C to +125°C). The small form-factor and extremely-low power consumption make this device suitable for space-constrained and battery-powered applications that require high-speed, high-resolution data acquisition.
