TPA3100D2
  • TPA3100D2
  • TPA3100D2

TPA3100D2

ACTIVE

20-W stereo, 10- to 26-V supply, analog input Class-D audio amplifier

Texas Instruments TPA3100D2 Product Info

1 April 2026 3

Parameters

Audio input type

Analog Input

Architecture

Class-D

Speaker channels (max)

Stereo

Control interface

Hardware

Output power (W)

20

Power stage supply (max) (V)

26

Power stage supply (min) (V)

10

THD + N at 1 kHz (%)

0.11

Load (min) (Ω)

4

Analog supply voltage (min) (V)

10

Analog supply voltage (max) (V)

26

Rating

Catalog

Operating temperature range (°C)

-40 to 85

Package

HTQFP (PHP)-48-81 mm² 9 x 9

Features

  • 20-W/ch into an 8- Load From a 18-V Supply
  • 10-W/ch into an 8- Load From a 12-V Supply
  • 15-W/ch into an 4- Load From a 12-V Supply
  • Operates from 10 V to 26 V
  • 92% Efficient Class-D Operation Eliminates Need for Heat Sinks
  • Four Selectable, Fixed Gain Settings
  • Differential Inputs
  • Thermal and Short-Circuit Protection With Auto Recovery Feature
  • Clock Output for Synchronization With Multiple Class-D Devices

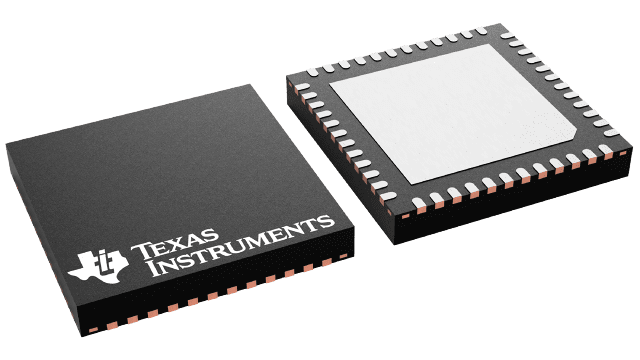

  • Surface Mount 7 mm × 7 mm, 48-pin QFN Package

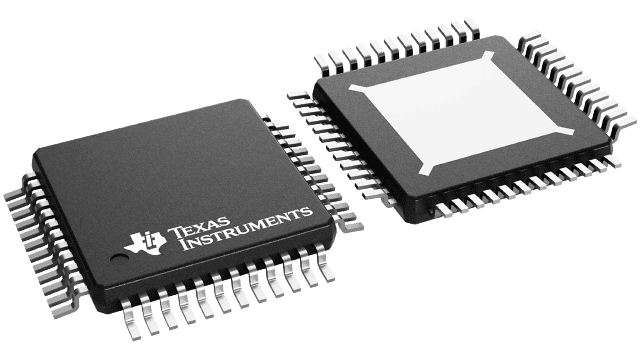

  • Surface Mount 9 mm × 9 mm, 48-pin HTQFP Package
  • APPLICATIONS
    • Televisions

  • 20-W/ch into an 8- Load From a 18-V Supply
  • 10-W/ch into an 8- Load From a 12-V Supply
  • 15-W/ch into an 4- Load From a 12-V Supply
  • Operates from 10 V to 26 V
  • 92% Efficient Class-D Operation Eliminates Need for Heat Sinks
  • Four Selectable, Fixed Gain Settings
  • Differential Inputs
  • Thermal and Short-Circuit Protection With Auto Recovery Feature
  • Clock Output for Synchronization With Multiple Class-D Devices
  • Surface Mount 7 mm × 7 mm, 48-pin QFN Package
  • Surface Mount 9 mm × 9 mm, 48-pin HTQFP Package
  • APPLICATIONS
    • Televisions

Description

The TPA3100D2 is a 20-W (per channel) efficient, Class-D audio power amplifier for driving bridged-tied stereo speakers. The TPA3100D2 can drive stereo speakers as low as 4 . The high efficiency of the TPA3100D2, 92%, eliminates the need for an external heat sink when playing music.

The gain of the amplifier is controlled by two gain select pins. The gain selections are 20, 26, 32, 36 dB.

The outputs are fully protected against shorts to GND, VCC, and output-to-output shorts with an auto recovery feature and monitor output.
