ACTIVE
Number of channels |
4 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
5.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
1.2 |
Rail-to-rail |
In, Out |
GBW (typ) (MHz) |
0.35 |
Slew rate (typ) (V/µs) |
0.2 |
Vos (offset voltage at 25°C) (max) (mV) |
2.25 |
Iq per channel (typ) (mA) |
0.01 |
Vn at 1 kHz (typ) (nV√Hz) |
66 |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
Offset drift (typ) (µV/°C) |
0.8 |
Features |
Cost Optimized, EMI Hardened, Low Power, Shutdown, Small Size |
Input bias current (max) (pA) |
12 |
CMRR (typ) (dB) |
89 |
Iout (typ) (A) |
0.04 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
0 |
Input common mode headroom (to positive supply) (typ) (V) |
0 |
Output swing headroom (to negative supply) (typ) (V) |
0.2 |
Output swing headroom (to positive supply) (typ) (V) |
0.2 |
TSSOP (PW)-14-32 mm² 5 x 6.4

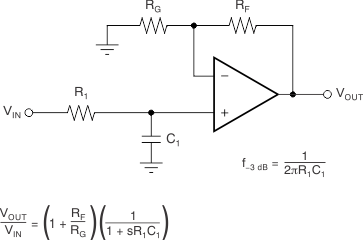

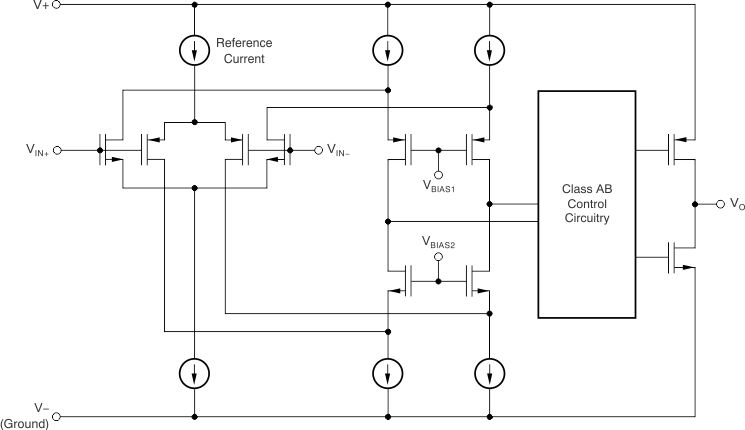

The low-power TLV904x-Q1 family includes single, dual, and quad-channel ultra-low-voltage (1.2V to 5.5V) operational amplifiers (op amps) with rail-to-rail input and output swing capabilities. The TLV904x-Q1 enables power savings both with the low quiescent current (10µA, typical) and the ability to operate at supply voltages as low as 1.2V. These devices are designed to be cost-effective for power and space-constrained applications where low-voltage operation is crucial.
The robust design of the TLV904x-Q1 family simplifies circuit design. These op amps feature an integrated RFI and EMI rejection filter, unity-gain stability, and no-phase reversal in input overdrive conditions. The device also delivers excellent AC performance with a gain bandwidth of 350kHz and a high capacitive load drive of 100pF, enabling designers to achieve both improved performance and lower power consumption.
