• Advanced Multibus Architecture With Three Separate 16-Bit Data Memory Buses and One Program Memory Bus
• 40-Bit Arithmetic Logic Unit (ALU) Including a 40-Bit Barrel Shifter and Two Independent 40-Bit Accumulators
• 17- xD7 17-Bit Parallel Multiplier Coupled to a 40-Bit Dedicated Adder for Non-Pipelined Single-Cycle Multiply/Accumulate (MAC) Operation
• Compare, Select, and Store Unit (CSSU) for the Add/Compare Selection of the Viterbi Operator
• Exponent Encoder to Compute an Exponent Value of a 40-Bit Accumulator Value in a Single Cycle
• Two Address Generators With Eight Auxiliary Registers and Two Auxiliary Register Arithmetic Units (ARAUs)
• Data Bus With a Bus Holder Feature
• Extended Addressing Mode for 8M xD7 16-Bit Maximum Addressable External Program Space
• 32K x 16-Bit On-Chip RAM Composed of:
  • Four Blocks of 8K xD7 16-Bit On-Chip Dual-Access Program/Data RAM
• 16K xD7 16-Bit On-Chip ROM Configured for Program Memory
• Enhanced External Parallel Interface (XIO2)
• Single-Instruction-Repeat and Block-Repeat Operations for Program Code
• Block-Memory-Move Instructions for Better Program and Data Management
• Instructions With a 32-Bit Long Word Operand
• Instructions With Two- or Three-Operand Reads
• Arithmetic Instructions With Parallel Store and Parallel Load
• Conditional Store Instructions
• Fast Return From Interrupt
• On-Chip Peripherals
  • Software-Programmable Wait-State Generator and Programmable Bank-Switching
  • On-Chip Programmable Phase-Locked Loop (PLL) Clock Generator With Internal Oscillator or External Clock Source ⁽¹⁾
  • One 16-Bit Timer
  • Six-Channel Direct Memory Access (DMA) Controller
  • Three Multichannel Buffered Serial Ports (McBSPs)
  • 8/16-Bit Enhanced Parallel Host-Port Interface (HPI8/16)
• Power Consumption Control With IDLE1, IDLE2, and IDLE3 Instructions With Power-Down Modes
• CLKOUT Off Control to Disable CLKOUT
• On-Chip Scan-Based Emulation Logic, IEEE Std 1149.1 ⁽²⁾ (JTAG) Boundary Scan Logic

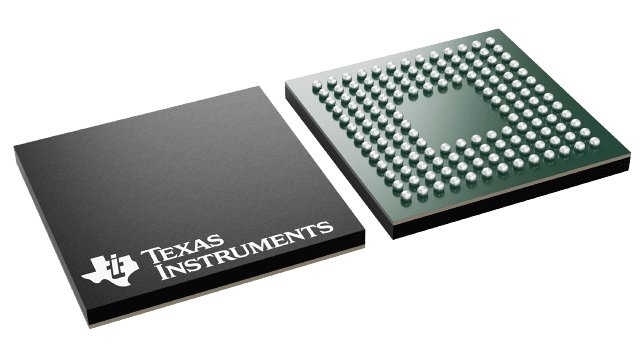

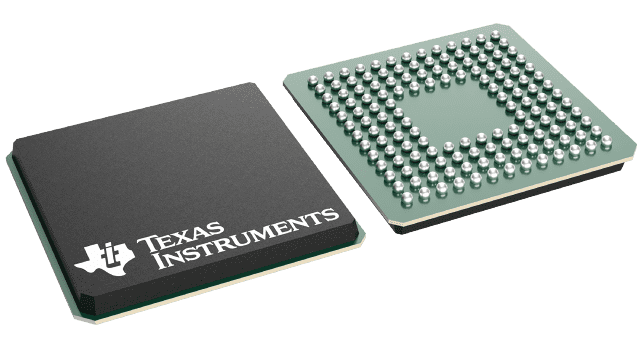

• 144-Pin Ball Grid Array (BGA) (GGU Suffix)

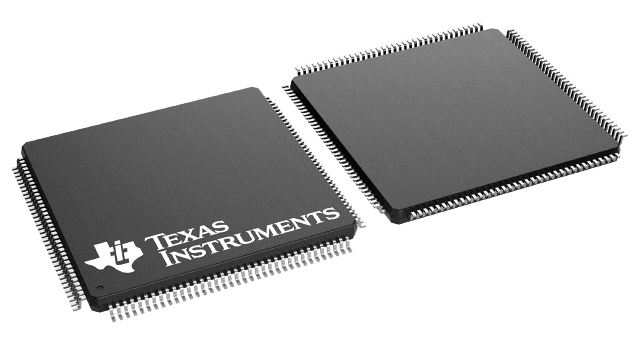

• 144-Pin Low-Profile Quad Flatpack (LQFP) (PGE Suffix)
• 6.25-ns Single-Cycle Fixed-Point Instruction Execution Time (160 MIPS)
• 8.33-ns Single-Cycle Fixed-Point Instruction Execution Time (120 MIPS)
• 3.3-V I/O Supply Voltage (160 and 120 MIPS)
• 1.6-V Core Supply Voltage (160 MIPS)
• 1.5-V Core Supply Voltage (120 MIPS)

⁽¹⁾ The on-chip oscillator is not available on all 5409A devices. For applicable devices, see the TMS320VC5409A Digital Signal Processor Silicon Errata (literature number SPRZ186).
⁽²⁾ IEEE Standard 1149.1-1990 Standard-Test-Access Port and Boundary Scan Architecture.
NOTE: This data manual is designed to be used in conjunction with the TMS320C54xx99 DSP Functional Overview (literature number SPRU307).
