0
ACTIVE
Rating |
Automotive |
Topology |
Buck |
Iout (max) (A) |
0.6 |
Vin (max) (V) |
36 |
Vin (min) (V) |
4 |
Vout (max) (V) |
34 |
Vout (min) (V) |
1 |
Features |
Enable, Fixed soft start, Forced PWM, Light-load efficiency, Overcurrent protection, Pre-bias startup, Synchronous rectification, Tracking, UVLO adjustable |
Control mode |
current mode |
Operating temperature range (°C) |
-40 to 125 |
Iq (typ) (A) |
0.00008 |
Duty cycle (max) (%) |
98 |
SOT-23 (DBV)-6-8.12 mm² 2.9 x 2.8

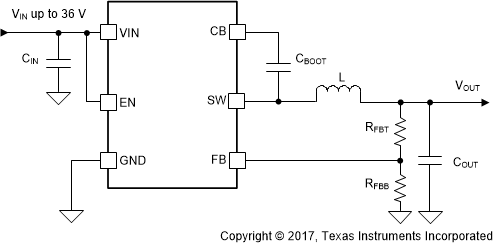

The TPS560430-Q1 is a wide-VIN, easy to use synchronous buck converter capable of driving up to 600-mA load current. With a wide input range of 4 V to 36 V, the device is suitable for a wide range of automotive applications for power conditioning from an unregulated source.
TPS560430-Q1 operates at 2.1-MHz switching frequency to support use of relatively small inductors for an optimized solution size. It has Eco-mode version to realize high efficiency at light load and FPWM version to achieve constant frequency, small output voltage ripple over the full load range. Soft-start and compensation circuits are implemented internally which allows the device to be used with minimum external components.
The device has built-in protection features, such as cycle-by-cycle current limit, hiccup mode short-circuit protection, and thermal shutdown in case of excessive power dissipation. The TPS560430-Q1 is available in SOT-23-6 package.
