VSP5324-Q1
  • VSP5324-Q1
  • VSP5324-Q1

VSP5324-Q1

ACTIVE

Automotive 4-Channel 12-Bit 80MSPS Analog-to-Digital Converter (ADC)

Texas Instruments VSP5324-Q1 Product Info

1 April 2026 1

Parameters

Resolution (Bits)

12

Number of channels

4

Sample rate (Msps)

80

Gain (min) (dB)

0

Gain (max) (dB)

12

Pd (typ) (mW)

2.2

Supply voltage (max) (V)

2.2

Operating temperature range (°C)

-40 to 105

Output data format

LVDS

Rating

Automotive

Package

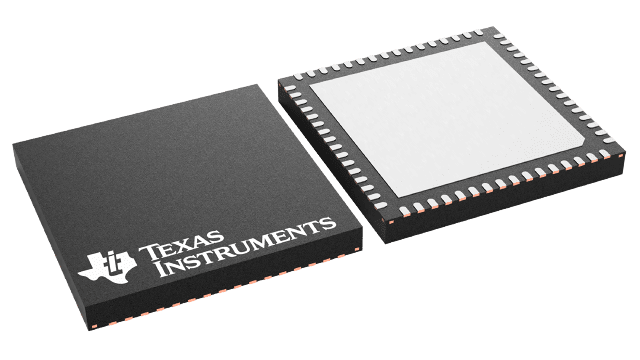

VQFN (RGC)-64-81 mm² 9 x 9

Features

  • Qualified for Automotive Applications
  • AEC-Q100 Qualified With the Following Results
    • Device Temperature Grade 2: –40°C to +105°C
    • Device HBM ESD Classification Level 2
    • Device CDM ESD Classification Level C4B
  • Designed for Low Power:
    • One-Lane Interface:
      65 mW per Channel at 50 MSPS
    • Two-Lane Interface:
      82 mW per Channel at 80 MSPS
  • Dynamic Performance:
    • 5-MHz Input Frequency, 80 MSPS
    • SNR: 70 dBFS
    • SFDR: 85 dBc
  • Serial LVDS ADC Data Outputs
  • Variety of LVDS Test Patterns to Verify Data Capture
  • Package: 9-mm × 9-mm VQFN-64
  • Operating Temperature: –40°C to +105°C
  • Qualified for Automotive Applications
  • AEC-Q100 Qualified With the Following Results
    • Device Temperature Grade 2: –40°C to +105°C
    • Device HBM ESD Classification Level 2
    • Device CDM ESD Classification Level C4B
  • Designed for Low Power:
    • One-Lane Interface:
      65 mW per Channel at 50 MSPS
    • Two-Lane Interface:
      82 mW per Channel at 80 MSPS
  • Dynamic Performance:
    • 5-MHz Input Frequency, 80 MSPS
    • SNR: 70 dBFS
    • SFDR: 85 dBc
  • Serial LVDS ADC Data Outputs
  • Variety of LVDS Test Patterns to Verify Data Capture
  • Package: 9-mm × 9-mm VQFN-64
  • Operating Temperature: –40°C to +105°C

Description

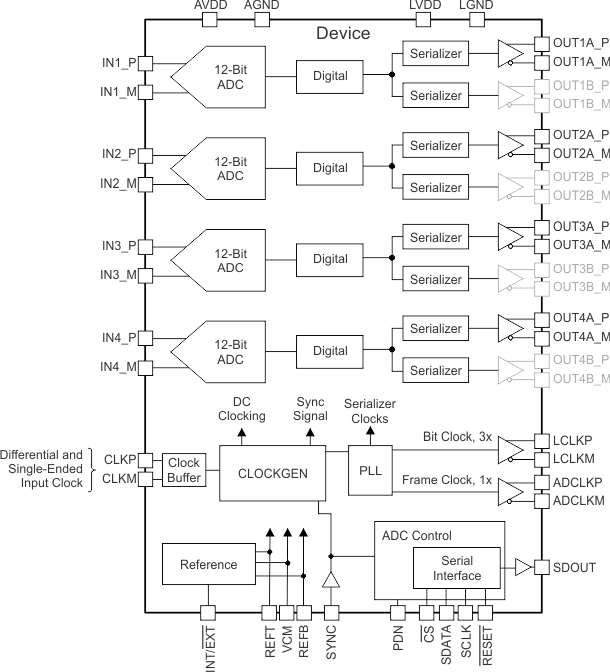

The VSP5324-Q1 device is a low-power, 12-bit, 80-MSPS, quad-channel, analog-to-digital converter (ADC). Low-power consumption and multiple-channel integration in a compact package makes the device attractive for 3D time-of-flight (ToF) systems.

Serial low-voltage differential signaling (LVDS) outputs reduce the number of interface lines and enable high system integration.

The device is available in a compact 9-mm × 9-mm VQFN-64 Package.

The VSP5324-Q1 device is a low-power, 12-bit, 80-MSPS, quad-channel, analog-to-digital converter (ADC). Low-power consumption and multiple-channel integration in a compact package makes the device attractive for 3D time-of-flight (ToF) systems.

Serial low-voltage differential signaling (LVDS) outputs reduce the number of interface lines and enable high system integration.

The device is available in a compact 9-mm × 9-mm VQFN-64 Package.
