ACTIVE
Rating |
Automotive |
Vin (max) (V) |
5.5 |
Vin (min) (V) |
1.4 |
Iout (max) (A) |
0.3 |
Output options |
Fixed Output |
Vout (max) (V) |
3.3 |
Vout (min) (V) |
1 |
Fixed output options (V) |
1, 1.1, 1.2, 1.5, 1.8, 2.5, 2.8, 3, 3.3 |
Noise (µVrms) |
120 |
PSRR at 100 KHz (dB) |
28 |
Iq (typ) (mA) |
0.034 |
Features |
Enable, Foldback Overcurrent protection |
Thermal resistance θJA (°C/W) |
93 |
TI functional safety category |
Functional Safety-Capable |
Load capacitance (min) (µF) |
0 |
Regulated outputs (#) |
1 |
Accuracy (%) |
1.4 |
Dropout voltage (Vdo) (typ) (mV) |
125 |
Operating temperature range (°C) |
-40 to 150 |
SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8
The TLV733P-Q1 family of low dropout (LDO) linear regulators are ultra-small, low quiescent current LDOs that can source 300 mA with good line and load transient performance. These devices provide a typical accuracy of 1%.

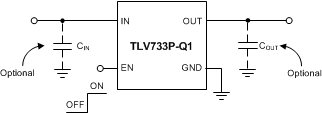

The TLV733P-Q1 family is designed with a modern capacitor-free architecture to ensure stability without an input or output capacitor. The removal of the output capacitor allows for a very small solution size, and can eliminate inrush current at startup. Furthermore, the TLV733P-Q1 family is also stable with ceramic output capacitors if an output capacitor is necessary. The TLV733P-Q1 family also provides foldback current control during device power-up and enabling if an output capacitor is used. This functionality is especially important in battery-operated devices.
The TLV733P-Q1 family provides an active pulldown circuit to quickly discharge output loads when disabled.

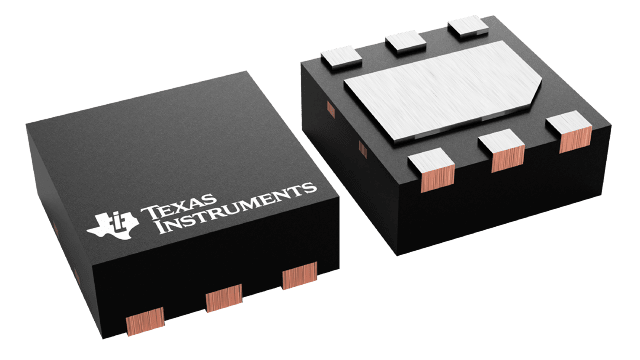

The TLV733P-Q1 family is available in the 6-pin DRV (WSON) and 5-pin DBV (SOT-23) packages.
