SN74ACT125-Q1
  • SN74ACT125-Q1
  • SN74ACT125-Q1
  • SN74ACT125-Q1
  • SN74ACT125-Q1

SN74ACT125-Q1

ACTIVE

Automotive 4-ch buffers with TTL compatible inputs and 3-state outputs

Texas Instruments SN74ACT125-Q1 Product Info

1 April 2026 0

Parameters

Rating

Automotive

Operating temperature range (°C)

to

Package

TSSOP (PW)-14-32 mm² 5 x 6.4

Features

  • AEC-Q100 qualified for automotive applications:
    • Device temperature grade 1: -40°C to +125°C
    • Device HBM ESD classification level 2
    • Device CDM ESD classification level C4B

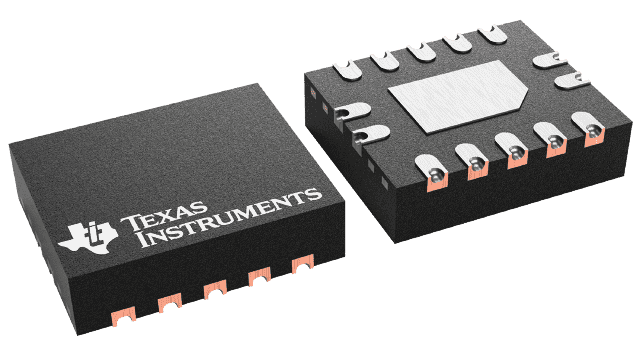

  • Available in wettable flank QFN package
  • Operating voltage range of 4.5V to 5.5V
  • TTL-compatible inputs
  • Continuous ±24mA output drive at 5V
  • Supports up to ±75mA output drive at 5Vin short bursts
  • Drives 50Ω transmission lines
  • Fast operation with delay of 8.7ns
  • AEC-Q100 qualified for automotive applications:
    • Device temperature grade 1: -40°C to +125°C
    • Device HBM ESD classification level 2
    • Device CDM ESD classification level C4B
  • Available in wettable flank QFN package
  • Operating voltage range of 4.5V to 5.5V
  • TTL-compatible inputs
  • Continuous ±24mA output drive at 5V
  • Supports up to ±75mA output drive at 5Vin short bursts
  • Drives 50Ω transmission lines
  • Fast operation with delay of 8.7ns

Description

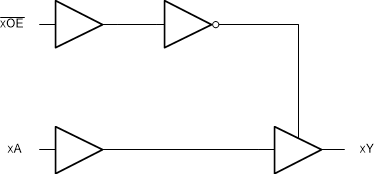

The SN74ACT125-Q1 contains four independent 3- state buffers.

The SN74ACT125-Q1 contains four independent 3- state buffers.
