THS770012
  • THS770012
  • THS770012

THS770012

ACTIVE

High-Speed Fully Differential ADC Driver Amplifier with 10 to 13 dB Selectable Gain

Texas Instruments THS770012 Product Info

1 April 2026 3

Parameters

PGA/VGA

PGA

Number of channels

1

Vs (min) (V)

4.75

Vs (max) (V)

5

Input type

Differential

Output type

Differential

Interface type

Resistance

BW at Acl (MHz)

900

Acl, min spec gain (V/V)

3

Voltage gain (min) (V/V)

3

Voltage gain (max) (V/V)

4.8

Gain (max) (dB)

13.7

Architecture

Fully Differential ADC Driver

Features

On chip gain resistors, Shutdown

Input voltage noise (typ) (µV√Hz)

0.0015

Slew rate (typ) (V/µs)

3400

Iq per channel (typ) (mA)

100

Rating

Catalog

Operating temperature range (°C)

-40 to 85

Package

VQFN (RGE)-24-16 mm² 4 x 4

Features

  • 900MHz Bandwidth at Gain of +10dB
  • 3300V/µs Slew Rate, VOUT = 2V step
  • Adjustable Gain: +10dB to +13.7dB
  • IMD3: –100dBc, VOUT = 2VPP, RL = 400Ω,
    f = 100MHz
  • OIP3: 47dBm, f = 100MHz
  • Noise Figure: 10.7 dB, f = 100MHz
  • 900MHz Bandwidth at Gain of +10dB
  • 3300V/µs Slew Rate, VOUT = 2V step
  • Adjustable Gain: +10dB to +13.7dB
  • IMD3: –100dBc, VOUT = 2VPP, RL = 400Ω,
    f = 100MHz
  • OIP3: 47dBm, f = 100MHz
  • Noise Figure: 10.7 dB, f = 100MHz

Description

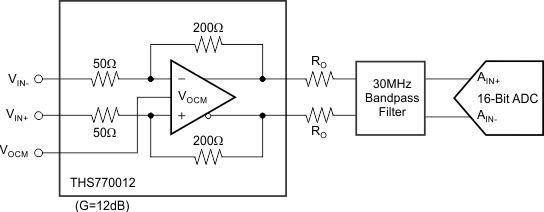

The THS770012 is a wideband, fully-differential amplifier, with adjustable gain range from +10dB to +13.7dB (with external components). It is designed and optimized specifically for driving 16-bit analog-to-digital converters (ADCs) at input frequencies up to 130MHz, and 14-bit ADCs at input frequencies up to 200MHz. This device provides high bandwidth, high-voltage output with low distortion and low noise, critical in high-speed data acquisition systems that require very high dynamic range, such as wireless base stations and test and measurement applications. This device also makes an excellent differential amplifier for general-purpose, high-speed differential signal chain and short line driver applications.

The THS770012 operates on a nominal +5V single supply, offers very fast, 7.5ns maximum recovery time from overdrive conditions, and has a power-down mode for power saving. The THS770012 is offered in a Pb-free (RoHS compliant) and green, QFN-24 thermally-enhanced package. It is characterized for operation over the industrial temperature range of –40°C to +85°C.
