0
ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
3 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
3.5 |
BW at Acl (MHz) |
100 |
Acl, min spec gain (V/V) |
1 |
Slew rate (typ) (V/µs) |
55 |
Architecture |
Fully Differential ADC Driver, High Input Impedance |
Vn at flatband (typ) (nV√Hz) |
5.4 |
Iq per channel (typ) (mA) |
11 |
Rail-to-rail |
In to V+, Out |
Vos (offset voltage at 25°C) (max) (mV) |
8 |
Operating temperature range (°C) |
-40 to 85 |
Iout (typ) (mA) |
25 |
2nd harmonic (dBc) |
79 |
3rd harmonic (dBc) |
93 |
Frequency of harmonic distortion measurement (MHz) |
1 |
GBW (typ) (MHz) |
100 |
Input bias current (max) (pA) |
1.2 |
CMRR (typ) (dB) |
96 |
Rating |
Catalog |

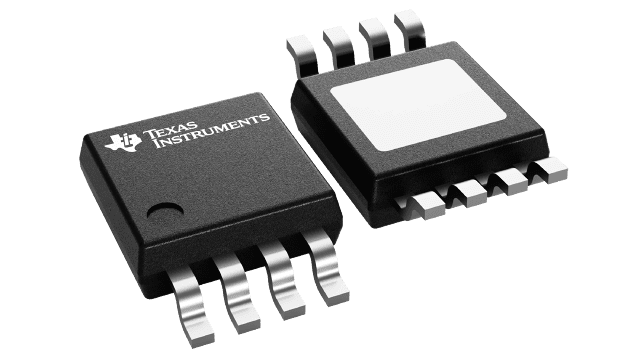

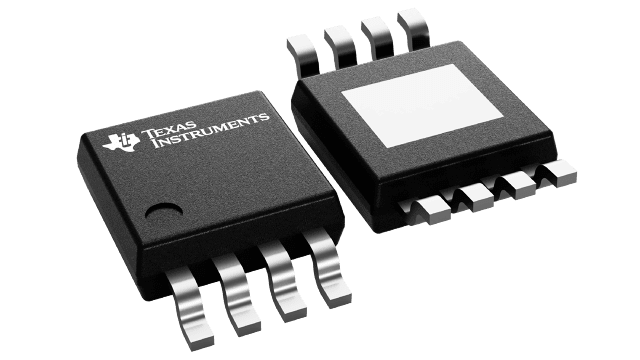

HVSSOP (DGN)-8-14.7 mm² 3 x 4.9
Hz Input-Referred Noise (10 kHz)PowerPAD is a trademark of Texas Instruments.
The THS412x is one in a family of fully differential-input, differential-output devices fabricated using Texas Instruments state-of-the-art submicron CMOS process.
The THS412x consists of a true fully-differential signal path from input to output. This results in excellent common-mode noise rejection and improved total harmonic distortion.
