TCAN2450-Q1

ACTIVE

Automotive CAN FD signal improvement capable (SIC) system basis chip (SBC) with buck regulator

Texas Instruments TCAN2450-Q1 Product Info

1 April 2026 0

Parameters

Type

Mid-range

Protocols

CAN, CAN FD, CAN SIC

Number of channels

1

Signaling rate (max) (Mbps)

8

Supply voltage (V)

5.5 to 28

Bus fault voltage (V)

-58 to 58

Iout (max) (mA)

1200

Regulated outputs (#)

2

Step-down DC/DC converter

1

Step-down DC/DC Vout (typ) (V)

3.3, 5

LDO

1

LDO Vout (typ) (V)

5

Watchdog type

Integrated, Timeout, Window

Low-power mode

Selective Wake, Sleep, Standby

Rating

Automotive

Package

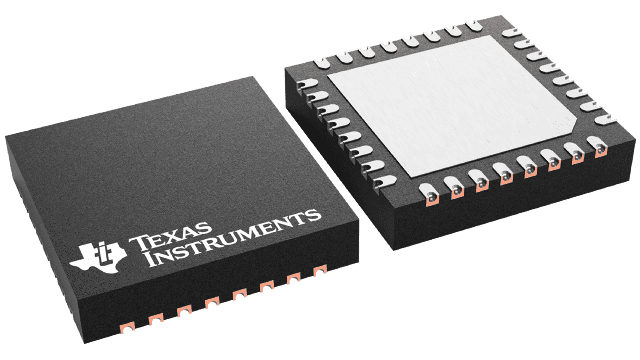

VQFN (RHB)-32-25 mm² 5 x 5

Features

  • AEC-Q100 qualified for automotive applications
  • Meets the requirements of ISO 11898-2:2024 for CAN-FD and CAN-FD Signal Improvement Capability (SIC)
  • Functional Safety Quality-Managed
  • Integrated 3.3V or 5V Buck regulator (VCC1) with 1A output capability
    • Pin-selectable output (3.3V or 5V) based on VSEL pin connection
    • Switching frequency options from 1.8MHz to 2.4MHz to enable a smaller on-board inductor
    • Integrated spread spectrum modulation to improve EMC performance
  • 5V LDO regulator (VCC2) supporting up to 200mA with off-board capability and short-to-battery protection
  • Multiple methods to wake-up from Sleep mode
    • CAN bus wake-up pattern (WUP)
    • Local wake up (LWU) using four WAKE pins
      • Cyclic sensing wake-up using a high-side switch (HSS4)
    • Selective wake (partial networking) capability, TCAN2451-Q1 only
    • Digital wake-up using SW pin
  • WAKE pins configurable as ID pins to identify ECU location in the vehicle
  • Four high-side switches to support multiple loads and allow for cyclic sensing wake
  • Fail-safe output pin (LIMP):
    • Optionally used as a low-side switch
  • ±58V Bus fault protection
  • Advanced CAN bus fault diagnostics
  • Timeout, window, and Q&A watchdog support
  • Access to EEPROM to save device configuration
  • Available in 32-pin leadless package with wettable flank for improved automated optical inspection (AOI) capability
  • AEC-Q100 qualified for automotive applications
  • Meets the requirements of ISO 11898-2:2024 for CAN-FD and CAN-FD Signal Improvement Capability (SIC)
  • Functional Safety Quality-Managed
  • Integrated 3.3V or 5V Buck regulator (VCC1) with 1A output capability
    • Pin-selectable output (3.3V or 5V) based on VSEL pin connection
    • Switching frequency options from 1.8MHz to 2.4MHz to enable a smaller on-board inductor
    • Integrated spread spectrum modulation to improve EMC performance
  • 5V LDO regulator (VCC2) supporting up to 200mA with off-board capability and short-to-battery protection
  • Multiple methods to wake-up from Sleep mode
    • CAN bus wake-up pattern (WUP)
    • Local wake up (LWU) using four WAKE pins
      • Cyclic sensing wake-up using a high-side switch (HSS4)
    • Selective wake (partial networking) capability, TCAN2451-Q1 only
    • Digital wake-up using SW pin
  • WAKE pins configurable as ID pins to identify ECU location in the vehicle
  • Four high-side switches to support multiple loads and allow for cyclic sensing wake
  • Fail-safe output pin (LIMP):
    • Optionally used as a low-side switch
  • ±58V Bus fault protection
  • Advanced CAN bus fault diagnostics
  • Timeout, window, and Q&A watchdog support
  • Access to EEPROM to save device configuration
  • Available in 32-pin leadless package with wettable flank for improved automated optical inspection (AOI) capability

Description

The TCAN245x-Q1 is a family of system basis chips (SBC) that provide a control area network flexible data rate capable (CAN FD) transceiver that meets the physical layer requirements of ISO-11898:2-2024 including the SIC specification. The CAN FD transceiver supports data rates up to 8Mbps. The TCAN245x-Q1 integrates a buck regulator (VCC1) that can output either 3.3V or 5V, and provide up to 1A output current. The buck regulator integrates spread spectrum modulation to improve EMC performance. VCC2 LDO provides 5V output for loads up to 200mA. TCAN2451-Q1 supports Partial Networking by recognizing a selective wakeup frame (WUF)

The TCAN245x-Q1 includes features such as LIMP, four local wake inputs and four high side switches. The high side switch can be on/off, 10-bit PWM or timer controlled. Using the GFO pin, controlling an external CAN FD, LIN transceiver, CAN SBC or LIN SBC is possible. The WAKE pins can be configured for static sensing, cyclic sensing (with HSS4 pin) and pulse based for waking up. These devices provide EEPROM to store specific device configuration information: thus, avoiding extensive reprogramming after power fluctuations.

The TCAN245x-Q1 is a family of system basis chips (SBC) that provide a control area network flexible data rate capable (CAN FD) transceiver that meets the physical layer requirements of ISO-11898:2-2024 including the SIC specification. The CAN FD transceiver supports data rates up to 8Mbps. The TCAN245x-Q1 integrates a buck regulator (VCC1) that can output either 3.3V or 5V, and provide up to 1A output current. The buck regulator integrates spread spectrum modulation to improve EMC performance. VCC2 LDO provides 5V output for loads up to 200mA. TCAN2451-Q1 supports Partial Networking by recognizing a selective wakeup frame (WUF)

The TCAN245x-Q1 includes features such as LIMP, four local wake inputs and four high side switches. The high side switch can be on/off, 10-bit PWM or timer controlled. Using the GFO pin, controlling an external CAN FD, LIN transceiver, CAN SBC or LIN SBC is possible. The WAKE pins can be configured for static sensing, cyclic sensing (with HSS4 pin) and pulse based for waking up. These devices provide EEPROM to store specific device configuration information: thus, avoiding extensive reprogramming after power fluctuations.
