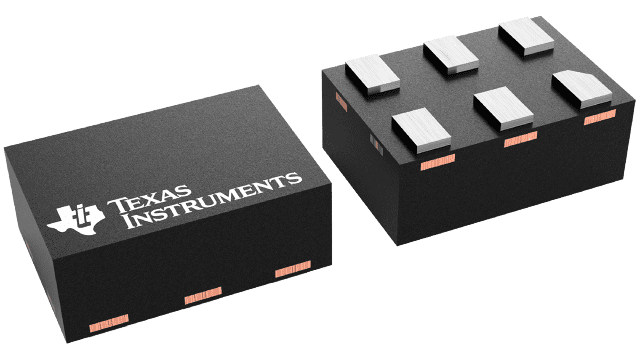

SN74LVC1G125

ACTIVE

Texas Instruments SN74LVC1G125 Product Info

1 April 2026 1

Technology family	LVC
Supply voltage (min) (V)	1.65
Supply voltage (max) (V)	5.5
Number of channels	1
IOL (max) (mA)	32
Supply current (max) (µA)	10
IOH (max) (mA)	-32
Input type	Standard CMOS
Output type	3-State
Features	Balanced outputs, Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns)
Rating	Catalog
Operating temperature range (°C)	-40 to 125

DSBGA (YZP)-5-2.1875 mm² 1.75 x 1.25

Available in the Ultra Small 0.64-mm²
Package (DPW) With 0.5-mm Pitch
Supports 5-V V_CC Operation
Inputs Accept Voltages to 5.5 V
Provides Down Translation to V_CC
Max t_pd of 3.7 ns at 3.3 V
Low Power Consumption, 10-μA Max I_CC
±24-mA Output Drive at 3.3 V
I_off Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
Latch-Up Performance Exceeds 100 mA
Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)

Available in the Ultra Small 0.64-mm²
Package (DPW) With 0.5-mm Pitch
Supports 5-V V_CC Operation
Inputs Accept Voltages to 5.5 V
Provides Down Translation to V_CC
Max t_pd of 3.7 ns at 3.3 V
Low Power Consumption, 10-μA Max I_CC
±24-mA Output Drive at 3.3 V
I_off Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
Latch-Up Performance Exceeds 100 mA
Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)

This bus buffer gate is designed for 1.65-V to 5.5-V V_CC operation.

The SN74LVC1G125 device is a single line driver with a 3-state output. The output is disabled when the output-enable (OE) input is high.

The CMOS device has high output drive while maintaining low static power dissipation over a broad V_CC operating range.

The SN74LVC1G125 device is available in a variety of packages including the ultra-small DPW package with a body size of 0.8 mm × 0.8 mm.

This bus buffer gate is designed for 1.65-V to 5.5-V V_CC operation.

The SN74LVC1G125 device is a single line driver with a 3-state output. The output is disabled when the output-enable (OE) input is high.

The CMOS device has high output drive while maintaining low static power dissipation over a broad V_CC operating range.

The SN74LVC1G125 device is available in a variety of packages including the ultra-small DPW package with a body size of 0.8 mm × 0.8 mm.
