Texas Instruments TCA39416 Product Info

Parameters

Features	Output Enable
Protocols	I2C, I3C
Frequency (max) (MHz)	12.5
VCCA (min) (V)	0.72
VCCA (max) (V)	1.98
VCCB (min) (V)	0.72
VCCB (max) (V)	1.98
Supply restrictions	No rule
Rating	Catalog
Operating temperature range (°C)	-40 to 125

Package

SOT-23-THN (DDF)-8-8.12 mm² 2.9 x 2.8

Features

2-bit dual supply bidirectional translator for I3C, I 2C, SMBus, SPI applications
Provides bidirectional voltage translation with no direction pin
High-impedance output Ax and Bx pins when OE = 0 V or V CC = 0 V
Internal 10-kΩ pull-up resistor on Ax and Bx pins
0.72 V to 1.98 V on both A and B ports; V CCA ≤ V CCB
Compatible with MIPI I3C supporting speeds up to 12.5 MHz
Compatible with JEDEC I3C module sideband bus specification (JESD403)
V CC Isolation feature: If either V CC input is at GND, both A and B ports are in the high-impedance state
No power-supply sequencing required: either V CCA or V CCB can be ramped first
Low I off of 2.5 µA when either V CCA or V CCB = 0 V
OE input can be tied directly to V CCA or controlled by GPIO
Latch-up performance exceeds 100 mA per JESD 78, class II
ESD Protection exceeds JESD 22
- 4000-V Human-body model (A114-B)
- 1500-V Charged-device model (C101)

2-bit dual supply bidirectional translator for I3C, I 2C, SMBus, SPI applications
Provides bidirectional voltage translation with no direction pin
High-impedance output Ax and Bx pins when OE = 0 V or V CC = 0 V
Internal 10-kΩ pull-up resistor on Ax and Bx pins
0.72 V to 1.98 V on both A and B ports; V CCA ≤ V CCB
Compatible with MIPI I3C supporting speeds up to 12.5 MHz
Compatible with JEDEC I3C module sideband bus specification (JESD403)
V CC Isolation feature: If either V CC input is at GND, both A and B ports are in the high-impedance state
No power-supply sequencing required: either V CCA or V CCB can be ramped first
Low I off of 2.5 µA when either V CCA or V CCB = 0 V
OE input can be tied directly to V CCA or controlled by GPIO
Latch-up performance exceeds 100 mA per JESD 78, class II
ESD Protection exceeds JESD 22
- 4000-V Human-body model (A114-B)
- 1500-V Charged-device model (C101)

Description

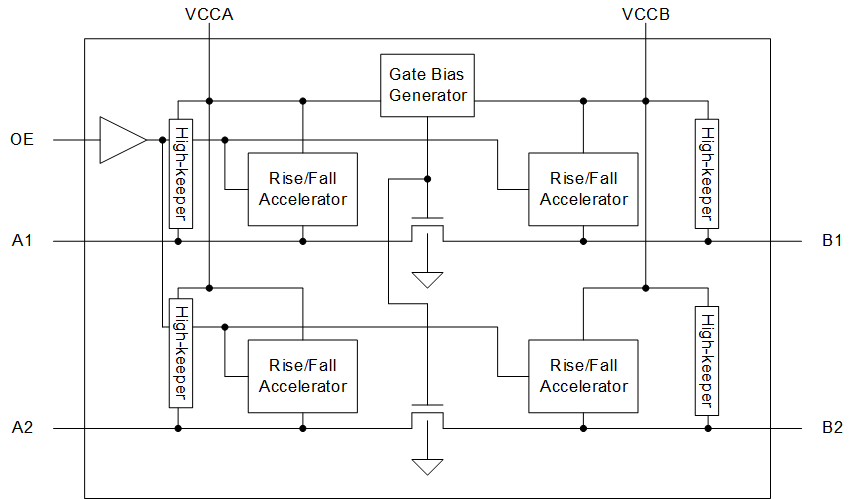

The TCA39416 is a 2-bit bidirectional MIPI I3C v1.1.1, I 2C, SMBus and SPI voltage-level translator with an output enable (OE) input and rising and falling edge accelerators. It is operational from 0.72 V to 1.98 V on both the A-side and B-side with V CCA must be less than V CCB for proper operation. This limitation allows the device to interface between lower and higher logic signal levels at any of the typical 1-V, 1.2-V and 1.8-V supply rails.

The OE input pin is referenced to V CCA, can be tied directly to V CCA, but it is also 1.98-V tolerant. The OE pin can also be controlled and set to a logic low to place all the Ax (A1, A2) and Bx (B1, B2) pins in a high-impedance state, which significantly reduces the quiescent current consumption.

The TCA39416 is compatible with 12.5 MHz I3C speeds and also supports higher speed SPI applications with two devices. It also enables bidirectional voltage level translation for traditional I2C-bus/SMBus applications under normal I 2C and SMBus configurations.

The TCA39416 features internal 10-kΩ pull-up resistors on Ax and Bx that act as high-keeper and are enabled based on respective V CC voltage when bus is high.

The TCA39416 is a 2-bit bidirectional MIPI I3C v1.1.1, I 2C, SMBus and SPI voltage-level translator with an output enable (OE) input and rising and falling edge accelerators. It is operational from 0.72 V to 1.98 V on both the A-side and B-side with V CCA must be less than V CCB for proper operation. This limitation allows the device to interface between lower and higher logic signal levels at any of the typical 1-V, 1.2-V and 1.8-V supply rails.

The OE input pin is referenced to V CCA, can be tied directly to V CCA, but it is also 1.98-V tolerant. The OE pin can also be controlled and set to a logic low to place all the Ax (A1, A2) and Bx (B1, B2) pins in a high-impedance state, which significantly reduces the quiescent current consumption.

The TCA39416 is compatible with 12.5 MHz I3C speeds and also supports higher speed SPI applications with two devices. It also enables bidirectional voltage level translation for traditional I2C-bus/SMBus applications under normal I 2C and SMBus configurations.

The TCA39416 features internal 10-kΩ pull-up resistors on Ax and Bx that act as high-keeper and are enabled based on respective V CC voltage when bus is high.
