ACTIVE
Sample rate (max) (Msps) |
1800, 3600 |
Resolution (Bits) |
12 |
Number of input channels |
1, 2 |
Interface type |
Parallel LVDS |
Analog input BW (MHz) |
2800 |
Features |
Ultra High Speed |
Rating |
Catalog |
Peak-to-peak input voltage range (V) |
0.8 |
Power consumption (typ) (mW) |
4180 |
Architecture |
Folding Interpolating |
SNR (dB) |
58.6 |
ENOB (Bits) |
9.4 |
SFDR (dB) |
73 |
Operating temperature range (°C) |
-40 to 85 |
Input buffer |
Yes |
PBGA (NXA)-292-729 mm² 27 x 27

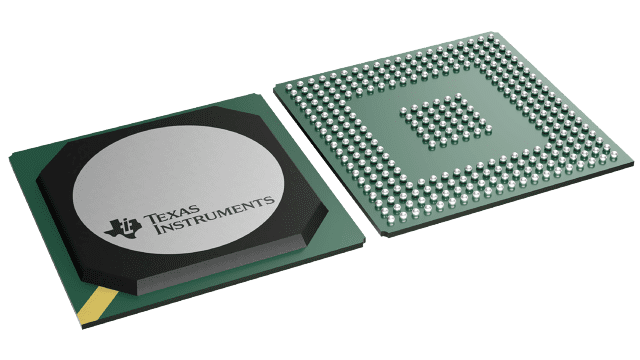

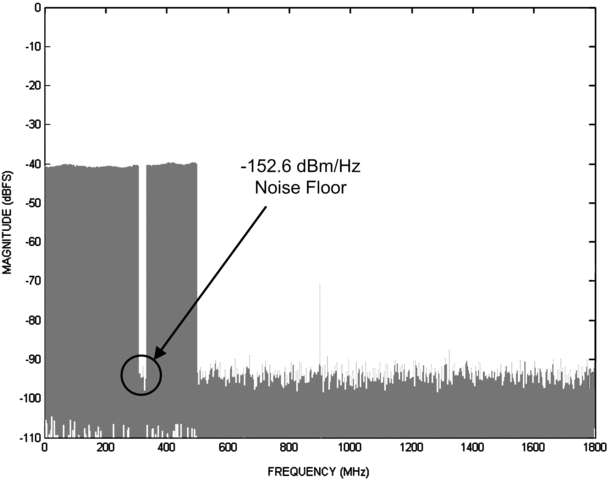

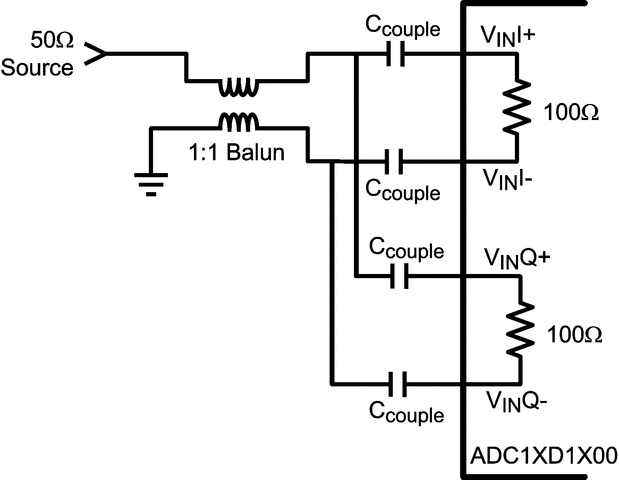

The 12-bit, 3.6 GSPS ADC12D1800 is the latest advance in TIs Ultra-High-Speed ADC family and builds upon the features, architecture and functionality of the 10-bit GHz family of ADCs.
The ADC12D1800 provides a flexible LVDS interface which has multiple SPI programmable options to facilitate board design and FPGA/ASIC data capture. The LVDS outputs are compatible with IEEE 1596.3-1996 and supports programmable common mode voltage.
The product is packaged in a leaded or lead-free 292-ball thermally enhanced BGA package over the rated industrial temperature range of –40°C to +85°C.
To achieve full rated performance for fCLK > 1.6 GHz, write the maximum power settings one time to Register 6h through the serial interface; see Section 5.6.1 for more information.
