0
ACTIVE
Technology family |
LVC |
Supply voltage (min) (V) |
1.2 |
Supply voltage (max) (V) |
3.6 |
Number of channels |
3 |
Inputs per channel |
3 |
IOL (max) (mA) |
24 |
IOH (max) (mA) |
-24 |
Input type |
Schmitt-Trigger |
Output type |
Push-Pull |
Features |
Over-voltage tolerant inputs, Partial power down (Ioff), Ultra high speed (tpd <5ns) |
Data rate (max) (Mbps) |
100 |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
TSSOP (PW)-14-32 mm² 5 x 6.4
AEC-Q100 qualified for automotive applications:
Device temperature grade 1: -40°C to +125°C
Device HBM ESD classification level 2
Device CDM ESD classification level C4B

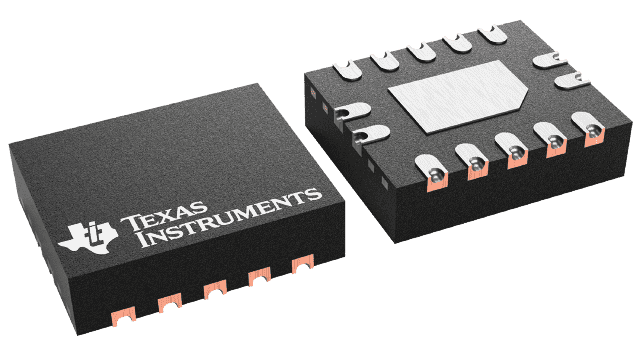

Available in wettable flank QFN (WBQA) package
The SN74LVC3G98-Q1 device features configurable multiple functions with Schmitt-trigger inputs. Eight patterns of a 3-bit input determines the output state. The user can choose the logic functions MUX, AND, OR, NAND, NOR, inverter, and non-inverter.
